Water Based Polyester Resin
Created with Pixso.

High Gloss Waterborne Polyester Resin Excellent Aluminum Orientation Anti-Crystallizatio

High Gloss Waterborne Polyester Resin Excellent Aluminum Orientation Anti-Crystallizatio

Brand Name: WeiLi Resin®
Model Number: WL-187
MOQ: 1ton
Price: Negotiation
Payment Terms: T/T
Supply Ability: 15t/month
Detail Information
Place of Origin:
China
Certification:
ISO9001
Appearance:
Light Yellow Transparent Viscous Liquid
Solid Content:
77±2
Viscosity (30°C):
10000-60000
Hydroxyl Value(Supply):
110 ~ 120
Hydroxyl Value(Solid):
>85(CC)
Packaging Details:
120 Kg/barrel
Highlight:

high gloss waterborne polyester resin

,

aluminum orientation polyester resin

,

anti-crystallization water based resin

Product Description
High Gloss Waterborne Polyester Resin Excellent Aluminum Orientation Anti-Crystallization
Product Overview

WL-187 is a self-emulsifying waterborne polyester resin, supplied as a 77% solution (unneutralized). It appears as a light yellow, transparent, viscous liquid and is suitable for waterborne coating systems. It must be neutralized with DMEA before use (recommended dosage: 6-8% based on resin weight).

Physical Properties
Properties Units Values
Appearance --- Light yellow transparent viscous liquid
Solid Content % 77±2
Viscosity (30°C) mPa.s 10000-60000
Hydroxyl value (Supply) mg KOH/g 110 ~ 120
Hydroxyl value (Solid) --- >85 (CC)
High Gloss Waterborne Polyester Resin product visualization
Performance Features
  • Excellent Adhesion: Strong adhesion to a variety of substrates (especially metal), suitable for bicycle, auto parts, wheel hub and other applications.
  • Good Recoatability: Facilitates multi-layer coating application and reduces intercoat adhesion issues.
  • High Gloss: The coating film has a full and bright appearance, suitable for applications with high appearance requirements.
  • Excellent Aluminum Orientation: Aluminum flakes align neatly in metallic basecoats, enhancing visual effects and metallic texture.
  • Good Anti-Crystallization: Resistant to crystallization during storage and application, ensuring good system stability.
  • Waterborne Self-Emulsifying: No additional emulsifier required, simple formulation, environmentally friendly and low odor.
  • Grindable: Facilitates integrated paint production and reduces processing steps.
  • Amino Baking Compatibility: Mature compatibility with Cymel 303LF/327, with adjustable performance.
  • Convenient Storage: Regular storage at 0-40°C, shelf life of 12 months; still usable after expiration if tested qualified, reducing waste.
Directions for Use
  • Neutralize with DMEA before use (recommended dosage: 6-8% based on resin weight)
  • Can be ground, with grinding temperature controlled below 50°C
  • Can be formulated with Cymel 303LF or Cymel 327 to produce amino baking coatings
Applications

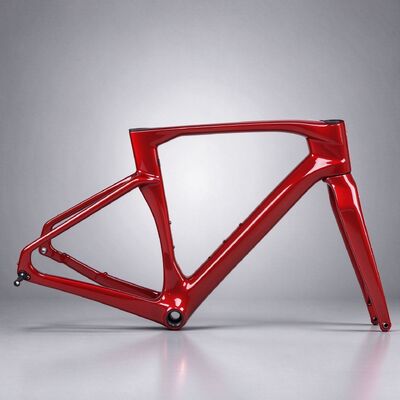

Bicycle, Auto Parts, Wheel Hubs
Waterborne polyester resin application examples
