High Gloss Saturated Polyester Resin For Coil Coating And Amino Backing Paint

Basic Information
Place of Origin: china
Brand Name: WeiLi Resin®
Certification: ISO9001
Model Number: WL-182
Minimum Order Quantity: 5000KG
Price: Negotiable

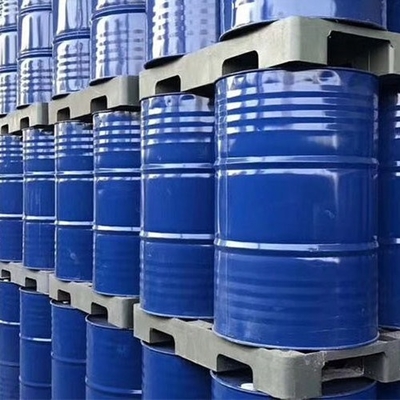

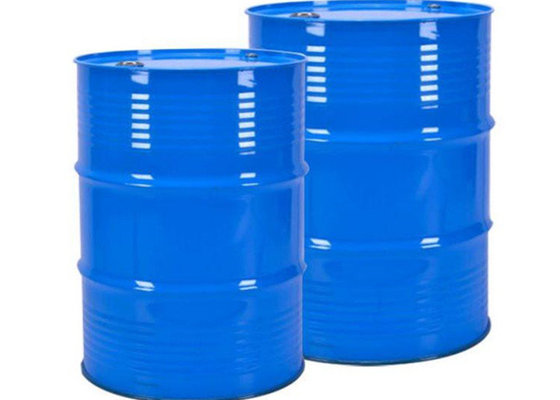

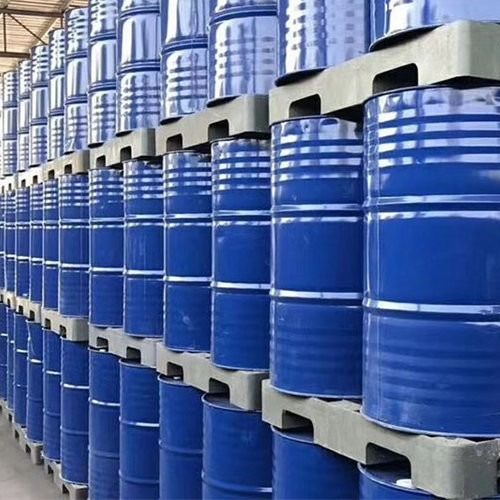

Packaging Details: 200kg/drum
Delivery Time: 14 work days
Payment Terms: L/C, T/T
Supply Ability: 500t/month
Detail Information
Solid Content: 70 ±2 Viscosity: 30-90*
Neutral.agent: Non Neutralization Density: 1.142 G/cm3
Solid OH Value MgKOH/g: 107 Type Of Polymer: Waterborne Acrylic Modified Saturated Polyester Resin
Appearance: Light Yellow Liquid
High Light:

High Gloss Saturated Polyester Resin


Amino Backing Paint Polyester Resin

Product Description


High Gloss Saturated Polyester Resin For Coil Coating And Amino Backing Paint




WL-182 is a water-dilutable saturated polyester resin, which can be infinitely diluted with deionized water, it can be stored stably under alkaline conditions, and will settle and stratify under acidic conditions, which is especially obvious when acidic pigments are added. Therefore, the diluted resin and finished paint should be stored under weak alkaline conditions. The pH can be adjusted using organic amines or ammonia. The viscosity of the emulsion increases with increasing pH. WL-182 saturated polyester resin has good flexibility and versatility, and it is used for water based amino baking paint.


WL-182 has good resin stability and low cost, low VOC, excellent shear stability, can be directly used for grinding color paste, high gloss, fullness, good resistance and can be widely used in coil and iron printing industries.


Physical Property

Appearance Light yellow liquid With eyes
Solid content 70±2% 30min@120℃
Water dilution Infinite Dilution ----
Hydroxyl value 107 mgKOH/g For solid resin, theoretical value
Viscosity (Brookfield 25℃) 30-90mpa.s NDJ-79 Rotational Viscometer
Density 1.142 g/cm3 Densitym meter

Viscosity *: after dilution with propylene glycol methyl ether (1:1)


Application Guide

◆ After WL-182 is neutralized with N, N-dimethylethanolamine( 5~6% of the resin), it can be directly diluted with water.

◆ Add methylated amino resin (20%-30% of the resin) for baking and curing. The baking temperature is above 120°C. The baking conditions and paint film properties are related to the amino resin used. When it used with the fully methylated amino resin, an acid catalyst(0.5-1% of the resin) must be added, and the baking temperature must be above 140°C.



The diluted emulsion of WL-187 has excellent shear stability and can directly participate in the grinding of color paste. Because the structural characteristics of the resin help the wetting of pigments and fillers, no or less wetting agent can be added when the resin is involved in grinding.


Water Based Saturated Polyester Resin-Wangqin

Model Polymer type Solid content %


( 25 , mPa s )

pH Neutralizer

Solid OH value


Crosslinking with


Grind or not Charateristics Application
WL-182 Water-based acrylic modified saturated polyester resin 70 ±2 30-90* ----- Unneutralized 107 ok ok Highly versatile, Cost-effective  Water based amino baking paint
WL-181C Water-based saturated polyester resin 75 ±2 20-70* ----- Unneutralized 115 ok ok High gloss, high fullness, high cost performance Water based amino baking paint



Water-based saturated polyester resin


81 ±2



----- Unneutralized 120 ok ok High hardness (>3H), high gloss, fast crosslinking at low temperature  Advanced decorative water-based amino baking paint
WL-183 Water-based acrylic modified saturated polyester resin 75±2 30-80* ----- Unneutralized 115 ok ok High gloss, fast surface drying, good construction performance Decorative water-based amino baking paint
WL-187 Water-based acrylic modified saturated polyester resin 76±2 30-70* ----- Unneutralized 115 ok ok Good flexibility and versatility Water based amino baking paint
WL-185  Water-based acrylic modified saturated polyester resin 45 ±2 200-2000



Unneutralized 130 ok ok High fullness, excellent flexibility and recoatability Advanced decorative water-based amino baking paint

Noted: Viscosity with * indicate the viscosity after 1:1 dilution of propylene glycol methyl ether.


Storage Condition

Store the product in a cool and dry place, the recommended storage temperature is 0~40℃. The shelf life is one year. After the expiration date, if the test passed, it still can be used.


Special Tips

This material is complied according to our existing technology and experience, the technical advice provided is sincere, but it is not guaranteed to be used in all samples and formulations, all the data are for users reference only.
