| Place of Origin: | china |
|---|---|
| Brand Name: | WeiLi Resin® |
| Certification: | ISO9001 |
| Model Number: | WL-181C |
| Minimum Order Quantity: | 5000KG |
| Price: | Negotiable |

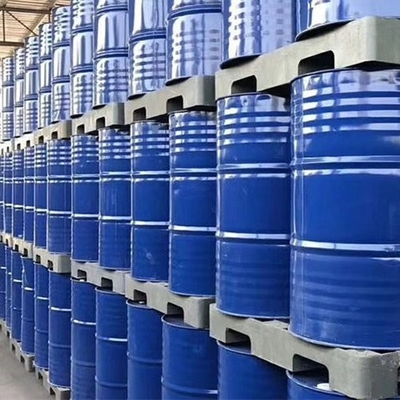

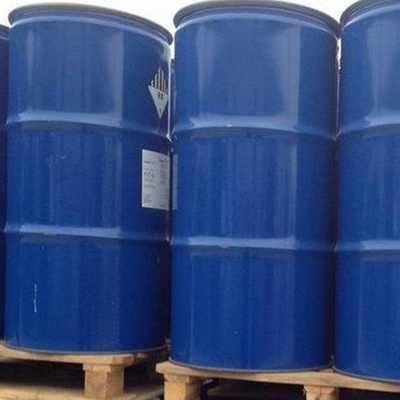

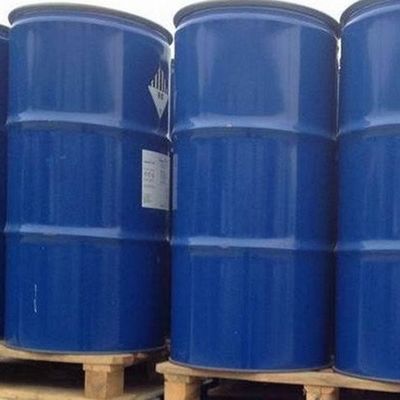

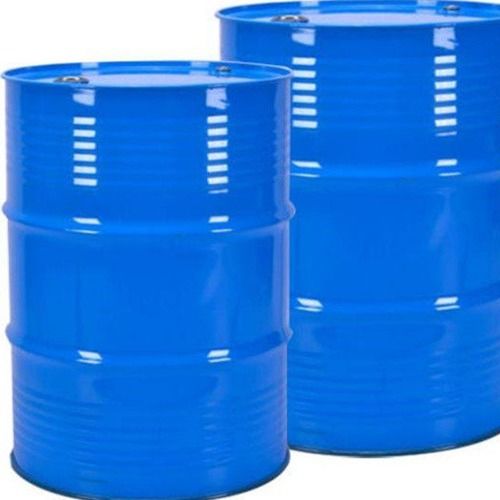

| Packaging Details: | 200kg/drum |
| Delivery Time: | 14 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500t/month |
| Solid Content: | 75±2 | Type Of Polymer: | Waterborne Acrylic Modified Saturated Polyester Resin |
|---|---|---|---|
| Viscosity: | 20-70mpa.s | Neutral.agent: | Non Neutralization |
| Density: | 1.142 G/cm3 | Appearance: | Light Yellow Liquid |
| High Light: | Water Based Saturated Polyester Resin,Amino Baking Topcoat Saturated Polyester Resin |
||
WL-181C Water-based saturated polyester resin
Introduction
our water based saturated polyester resin is consisted by water-based saturated polyester resin, cosolvent. WL-181C has non yellowing and good hardness water based saturated polyester resin backing coil coating
Physical Property
| Appearance | Light yellow liquid | With eyes |
| Solid content | 75±2% | 30min@120℃ |
| Water dilution | Infinite Dilution | ---- |
| Hydroxyl value | 115 mgKOH/g | For solid resin, theoretical value |
| Viscosity (Brookfield 25℃) | 20-70mpa.s | NDJ-79 Rotational Viscometer |
| Density | 1.142 g/cm3 | Densitym meter |
Viscosity *: after dilution with propylene glycol methyl ether (1:1)
Performance Features
Applications
Used to make high decorative amino baking finish topcoat.
Application Guide
◆ After it is neutralized with N, N-dimethylethanolamine( 5~6% of the resin), it can be directly diluted with water.
◆ Add methylated amino resin (20%-30% of the resin) for baking and curing. The baking temperature is above 120°C. The baking conditions and paint film properties are related to the amino resin used. When it used with the fully methylated amino resin, an acid catalyst(0.5-1% of the resin) must be added, and the baking temperature must be above 140°C.
◆ It is a water-dilutable saturated polyester resin, which can be infinitely diluted with deionized water.
◆ The pH value can be adjusted with organic amine or ammonia water, and the viscosity of the emulsion will increase with the increase in pH value.
Water Based Saturated Polyester Resin-Wangqin
| Model | Polymer type | Solid content % |
Viscosity ( 25℃ , mPa • s ) |
pH | Neutralizer |
Solid OH value mgKOH/g |
Crosslinking with hydroxyl |
Grind or not | Charateristics | Application |
| WL-182 | Water-based acrylic modified saturated polyester resin | 70 ±2 | 30-90* | ----- | Unneutralized | 107 | ok | ok | Highly versatile, Cost-effective | Water based amino baking paint |
| WL-181C | Water-based saturated polyester resin | 75 ±2 | 20-70* | ----- | Unneutralized | 115 | ok | ok | High gloss, high fullness, high cost performance | Water based amino baking paint |
|
WL-181 |
Water-based saturated polyester resin |
81 ±2 |
30-70* |
----- | Unneutralized | 120 | ok | ok | High hardness (>3H), high gloss, fast crosslinking at low temperature | Advanced decorative water-based amino baking paint |
| WL-183 | Water-based acrylic modified saturated polyester resin | 75±2 | 30-80* | ----- | Unneutralized | 115 | ok | ok | High gloss, fast surface drying, good construction performance | Decorative water-based amino baking paint |
| WL-187 | Water-based acrylic modified saturated polyester resin | 76±2 | 30-70* | ----- | Unneutralized | 115 | ok | ok | Good flexibility and versatility | Water based amino baking paint |
| WL-185 | Water-based acrylic modified saturated polyester resin | 45 ±2 | 200-2000 |
7.0- 9.0 |
Unneutralized | 130 | ok | ok | High fullness, excellent flexibility and recoatability | Advanced decorative water-based amino baking paint |
Storage Condition
Store the product in a cool and dry place, the recommended storage temperature is 0~40℃. The shelf life is one year. After the expiration date, if the test passed, it still can be used.
Special Tips
This material is complied according to our existing technology and experience, the technical advice provided is sincere, but it is not guaranteed to be used in all samples and formulations, all the data are for users reference only.
