| Place of Origin: | china |
|---|---|
| Brand Name: | WeiLi Resin® |
| Certification: | ISO9001 |
| Model Number: | WL-187 |
| Minimum Order Quantity: | 5000KG |
| Price: | Negotiable |
| Packaging Details: | 200kg/drum |
| Delivery Time: | 14 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500t/month |
| Solid Content: | 76±2 | Viscosity: | 30-70* |
|---|---|---|---|
| Neutral.agent: | Non Neutralization | Density: | 1.142 G/cm3 |
| Solid OH Value MgKOH/g: | 115 | Type Of Polymer: | Waterborne Acrylic Modified Saturated Polyester Resin |
| High Light: | Water Based Saturated Polyester Resin,Amino Baking Paint Saturated Polyester Resin |
||
WL-187 Water-based saturated polyester resin
Composition:
WL-187 is a water-dilutable saturated polyester resin, which can be infinitely diluted with deionized water, it can be stored stably under alkaline conditions, and will settle and stratify under acidic conditions, which is especially obvious when acidic pigments are added. Therefore, the diluted resin and finished paint should be stored under weak alkaline conditions. The pH can be adjusted using organic amines or ammonia. The viscosity of the emulsion increases with increasing pH. WL-187 saturated polyester resin has good flexibility and versatility, and it is used for water based amino baking paint.
WL-187 has excellent hardness and flexibility after cross-linking with amino resin, and can be widely used in coil and iron printing industries.
Physical Property

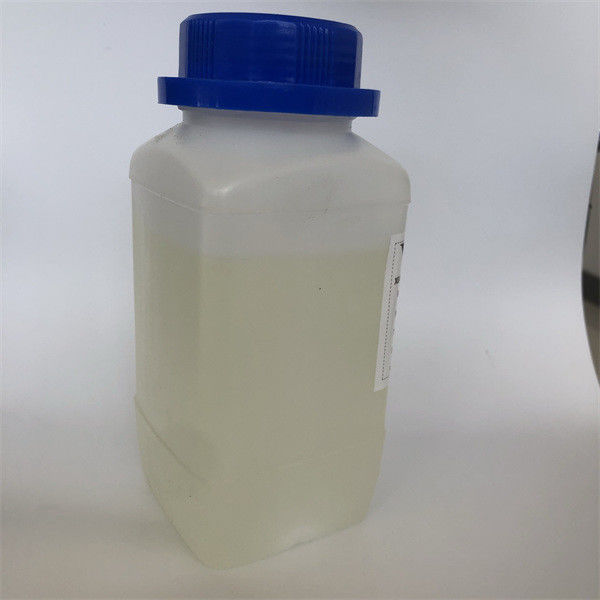

| Appearance | Light yellow liquid | With eyes |
| Solid content | 76±2% | 30min@120℃ |
| Water dilution | Infinite Dilution | ---- |
| Hydroxyl value | 115 mgKOH/g | For solid resin, theoretical value |
| Viscosity (Brookfield 25℃)* | 30-70mpa.s | NDJ-79 Rotational Viscometer |
| Density | 1.142 g/cm3 | Densitym meter |
Viscosity *: after dilution with propylene glycol methyl ether (1:1)
Application Guide
◆ After WL-187 is neutralized with N, N-dimethylethanolamine( 5~6% of the resin), it can be directly diluted with water.
◆ Add methylated amino resin (20%-30% of the resin) for baking and curing. The baking temperature is above 120°C. The baking conditions and paint film properties are related to the amino resin used. When it used with the fully methylated amino resin, an acid catalyst(0.5-1% of the resin) must be added, and the baking temperature must be above 140°C.
Characteristics
The diluted emulsion of WL-187 has excellent shear stability and can directly participate in the grinding of color paste. Because the structural characteristics of the resin help the wetting of pigments and fillers, no or less wetting agent can be added when the resin is involved in grinding.
Water Based Saturated Polyester Resin-Wangqin
| Model | Polymer type | Solid content % |
Viscosity ( 25℃ , mPa • s ) |
pH | Neutralizer |
Solid OH value mgKOH/g |
Crosslinking with hydroxyl |
Grind or not | Charateristics | Application |
| WL-182 | Water-based acrylic modified saturated polyester resin | 70 ±2 | 30-90* | ----- | Unneutralized | 107 | ok | ok | Highly versatile, Cost-effective | Water based amino baking paint |
| WL-181C | Water-based saturated polyester resin | 75 ±2 | 20-70* | ----- | Unneutralized | 115 | ok | ok | High gloss, high fullness, high cost performance | Water based amino baking paint |
|
WL-181 |
Water-based saturated polyester resin |
81 ±2 |
30-70* |
----- | Unneutralized | 120 | ok | ok | High hardness (>3H), high gloss, fast crosslinking at low temperature | Advanced decorative water-based amino baking paint |
| WL-183 | Water-based acrylic modified saturated polyester resin | 75±2 | 30-80* | ----- | Unneutralized | 115 | ok | ok | High gloss, fast surface drying, good construction performance | Decorative water-based amino baking paint |
| WL-187 | Water-based acrylic modified saturated polyester resin | 76±2 | 30-70* | ----- | Unneutralized | 115 | ok | ok | Good flexibility and versatility | Water based amino baking paint |
| WL-185 | Water-based acrylic modified saturated polyester resin | 45 ±2 | 200-2000 |
7.0- 9.0 |
Unneutralized | 130 | ok | ok | High fullness, excellent flexibility and recoatability | Advanced decorative water-based amino baking paint |
Noted: Viscosity with * indicate the viscosity after 1:1 dilution of propylene glycol methyl ether.
Storage Condition
Store the product in a cool and dry place, the recommended storage temperature is 0~40℃. The shelf life is one year. After the expiration date, if the test passed, it still can be used.
.
Special Tips
This material is complied according to our existing technology and experience, the technical advice provided is sincere, but it is not guaranteed to be used in all samples and formulations, all the data are for users reference only.
