Alcohol Resistance Thermosetting Acrylic Resin Glass Baking Paint

Product Details

Place of Origin: china

Brand Name: WeiLi Resin®

Certification: ISO9001

Model Number: WQ-TC515

Payment & Shipping Terms

Minimum Order Quantity: 5000KG

Price: Negotiable

Packaging Details: 25kg/bag

Delivery Time: 14 work days

Payment Terms: L/C, T/T

Supply Ability: 500t/month

Get Best Price
Contact Now
High Light:

Alcohol Resistance Thermosetting Acrylic Resin


Transparent liquid Thermosetting Acrylic Resin


Alcohol Resistance clear acrylic resin

Solid Content:
Solid Content:
Alcohol Resistance Thermosetting Acrylic Resin Glass Baking Paint

WQ-TC515 water based thermosetting acrylic resin




WQ-TC515 is a water based thermosetting acrylic resin. It is water-soluble after amine neutralization, can be directly made into glass baking paint, which can be cross-linked to form a film at an appropriate temperature.



  • Good gloss, high hardness, strong adhesion, high-fullness surface and
  • Excellent weather resistance, chemical resistance,
  • Good salt spray resistance, alcohol resistance, etc.


Physical Property

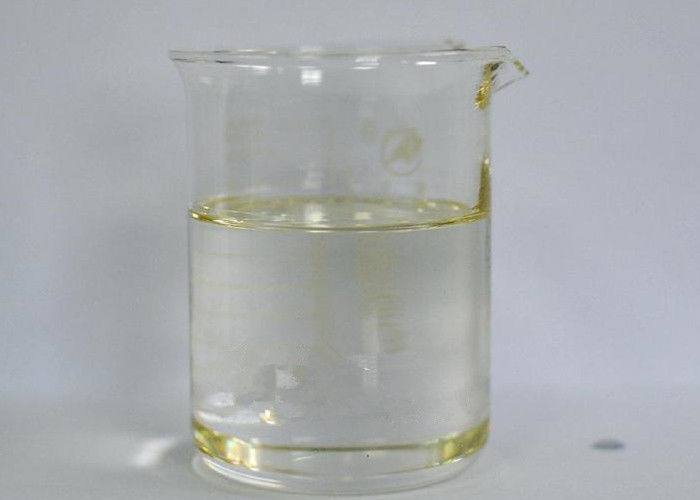

Appearance Transparent liquid
Color <1#(Fe-Co)
Solid content (125℃×1H,%) 65±2
Pigment (Gardner) ≥1
Viscosity (Cps/ 25℃) 6000-9000
Acid value (mgKOH/g) 45-60
Solvent Butanol/PM



  • Glass backing paint
  • Porcelain backing paint
  • Hardware backing paint


Reference formula for water-based acrylic glass baking varnish

Recipe composition Supplier/Recommend W%
Water based acrylic resin WQ-TC515 35--50
Methylated amino resin Cymel 303LF/325 8--12
Amine neutralizer DMEA 3--5
Water-based additive Water based leveling agents 0.1--0.3
Water-based defoamer   0.1--0.3
Water-based wetting and dispersing agent   0.5--2
Pigment Rutile Titanium Dioxide 10--25
Cosolvent alcohol Alcohol 1--5
Isobutanol   1--5
Ethylene glycol monobutyl ether   2--8
Water Deionized water 15--25


Alcohol Resistance Thermosetting Acrylic Resin Glass Baking Paint 0


Please neutralize the water-based acrylic resin WQ-TC515 with an amine neutralizer to a pH of about 7-8, then mix the water-based wetting and dispersing agent, pigment, part of the co-solvent and part of the deionized water evenly, and grind until the fineness is qualified After that, add the remaining co-solvents, additives, amino resin, deionized water, etc., stir evenly, adjust the viscosity, and filter and pack after passing the inspection.


Storage Condition

  • Should be stored in a ventilated and dry place, the packaging should be kept tightly closed, and away from sources of ignition;
  • The resin is stored in the unopened package below 40°C, and the shelf life is 12 months from the date of production.


Special Tips

This material is complied according to our existing technology and experience, the technical advice provided is sincere, but it is not guaranteed to be used in all samples and formulations, all the data are for users reference only.
