| Place of Origin: | china |
|---|---|
| Brand Name: | WeiLi Resin® |
| Certification: | ISO9001 |
| Model Number: | SE2592 |
| Minimum Order Quantity: | 5000KG |
| Price: | Negotiable |
| Packaging Details: | 200kg/dru |
| Delivery Time: | 14 work days |
| Supply Ability: | 500t/month |
| Appearance: | Transparent | Fe-Co Color: | ≤1 |
|---|---|---|---|
| Viscosity Pa.s/25℃: | 10-15 | Non-volatile %: | 50±2 |
| Acid Value MgKOH/g: | 1-3 | Tg ℃: | 92 |
| Highlight: | thermoplastic resin,water resistant resin,Alcohol Resistance Transparent Acrylic Resin |
||
Thermoplastic acrylic resin is synthetized by different acrylic monomers, its main advantages are the stability of light and its resistance to hydrolysis. In general, during synthesis, thermoplastic resins use a high content of methyl methacrylate in their polymerization backbone chain to provide excellent hardness and external durability, while improving the wettability of pigments and/or providing cross-linking or self-crosslinking capabilities, other acrylic monomers can also be used to give the acrylic resin the ability to sulfonate or phosphoric acid functionalities.
The biggest feature of the thermoplastic acrylic resin produced by our company is on the basis of not adding adhesion promoter, the aluminum pigmented paint or metallic paint has excellent adhesion to the substrates.
High performance paint produced by this series of products, due to good aluminum orientation and pigment wettability, good hardness and adhesion, good oil resistance and plasticity resistance, alcohol resistance, is widely used in 3C products (computer, communication, consumption), household appliances, metal equipment, wood furniture, floor, automobile, construction machinery and other fields.
This thermoplastic acrylic resin is especially recommended to be used in aluminum pigmented paint, metallic paint.
1. Features
High hardness, high abrasion resistance, Excellent aluminum powder distribution and orientation, alcohol resistance
2. Applications
Plastic aluminum paint for high demand
3. Properties
| Component | Appearance |
Fe-Co Color |
Viscosity Pa.s/25℃ |
Non-volatile % |
Acid value mgKOH/g |
Solvent |
Tg ℃ |
| Acrylic ester copolymer | clear | ≤1 | 10-15 | 50±2 | 1-3 | TOL/BAC/IBA | 92 |
4. Compatibility and solubility
| XYL | + | BCS | + |
| TOL | + | 120# | ○ |
| BAC | + | IBA | + |
| CYC | + | MEK | + |
Remark:+ show soluble in/compatible in ○ show partial soluble in/compatible in
5. Reference formula
|
Aluminum paint
|
Diluent | ||
| SE2592 | 60 | TOL | 15 |
| ZX1065 | 10 | IPA | 20 |
| 20% CAB-381-2 | 15 | BAC | 15 |
| BAC | 7.7 | IBA | 15 |
| BBG333 | 0.3 | BCS | 10 |
| TOL | 7.0 | EAC | 25 |
6. Process conditions
▲ Baking condition: 65℃ x 30min, corrosion resistance index is measured after 24hours
▲ Substrate: ABS
7. Test technical index
| Test Item | Test Method | Reference Standard | Test Standard |
Test Result (reference value) |
| Gloss | 60 degree | GB/T9754-88 | ≥80 | 82 |
| Hardness | Pencil scratch | GB/T6739-96 | ≥HB | HB |
| Adhesion | Cross - cut method | GB/T9286-98 | 100% | 100% |
| Abrasion resistance | Wiping method | --------- | ≥358times | 420times (13μm) |
| Alcohol resistance | Wiping method | --------- | No exposing base for 185times(500g) | 200 times (13μm) |
| Wettability | Visual method | ---------- | Easy to disperse, no seeding in storage, no jelly | Qualified |
| Silver dropping | Peeling off method | ---------- | No Silver dropping | Qualified |
8. Safe storage and shelf life
1. Stored in cool and ventilation place, keep far away from heat and fire resources, keep the container closed.
2. From production date, shelf life is 12months.
9. Packing specifications

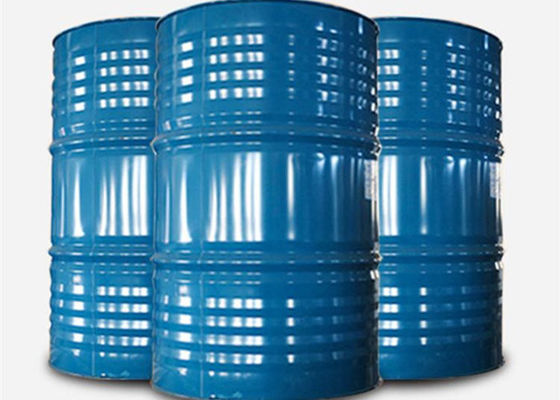

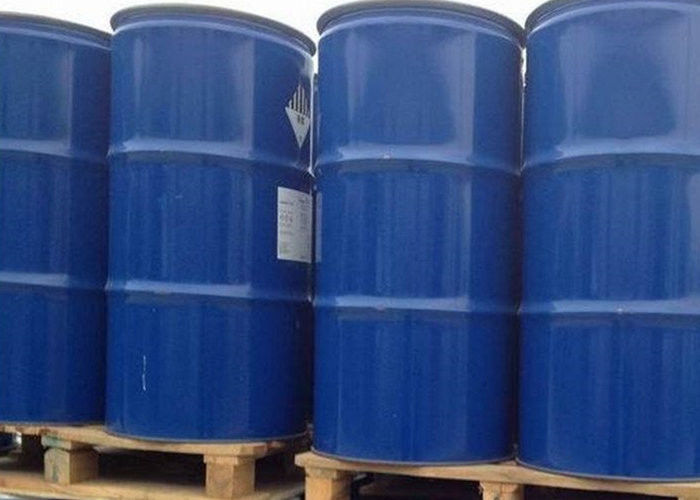

200kg/pail (new metal pail)
10. Safety
This product contains solvent, must do safeguard procedure, handle carefully, avoid contact with the skins and eyes, for other details, please refer to MSDS of this product.
