Clear Liquid Adhesion Thermoplastic Acrylic Resin For Screen Printing Ink

Product Details

Place of Origin: china

Brand Name: WeiLi Resin®

Certification: ISO9001

Model Number: SE2524

Payment & Shipping Terms

Minimum Order Quantity: 5000KG

Price: Negotiable

Packaging Details: 200kg/drum

Delivery Time: 14 work days

Payment Terms: L/C, T/T

Supply Ability: 500t/month

Get Best Price
Contact Now
Specifications
High Light:

Adhesion Thermoplastic Acrylic Resin

,

Clear Liquid Thermoplastic Acrylic Resin

,

high gloss clear acrylic resin

Appearance:
Clear Liquid
Appearance:
Clear Liquid
Description
Clear Liquid Adhesion Thermoplastic Acrylic Resin For Screen Printing Ink

SE2524 Thermoplastic Acrylic Resin



Introduction

Thermoplastic acrylic resin is synthetized by different acrylic monomers, its main advantages are the stability of light and its resistance to hydrolysis. In general, during synthesis, thermoplastic resins use a high content of methyl methacrylate in their polymerization backbone chain to provide excellent hardness and external durability, while improving the wettability of pigments and/or providing cross-linking or self-crosslinking capabilities, other acrylic monomers can also be used to give the acrylic resin the ability to sulfonate or phosphoric acid functionalities.





1. Features

Excellent adhesion, high gloss, excellent flexibility and pigment dispersity



2. Applications

Screen printing ink, gravure printing ink, paper gloss oil, transfer printing ink



3. Properties

Component Appearance

Fe-Co

Color

Viscosity

Pa.s/25℃

Non-volatile

%

Acid value

mgKOH/g

Solvent

Tg

Acrylic ester copolymer Clear <1 22-35 50±2 <1 S-100# 25



  • Compatibility and solubility
XYL + BCS +
TOL + 120#
BAC + IBA +
CYC + MEK +

Remark:+ show soluble in/compatible in ○ show partial soluble in/compatible in



5. Reference formula

Gravure white ink



Diluent
SE2524 40 TOL 15
BBG333 0.3 IPA 10
BBG052 0.3 BAC 32
BAC 15 S-100# 10
BBG306 0.2 BCS 8
S-100# 9.2 EAC 25
SE2525 white paste 35



6. Process conditions

▲ Baking condition: air drying

▲ Substrate: glossy paper

Clear Liquid Adhesion Thermoplastic Acrylic Resin For Screen Printing Ink 0



7. Test technical index

Test Item Test Method Reference Standard Test Standard

Test Result

(reference value)

Gloss 60 degree GB/T9754-88 ≥70 82
Hardness Pencil scratch GB/T6739-96 ≥6B 6B
Adhesion Cross - cut method GB/T9286-98 100% 100%
Wettability Visual method ---------- Easy to disperse, no seeding in storage, no jelly Qualified
Flexibility Paint film bending tester GB/T1731-1993 1µm 1µm



8. Safe storage and shelf life

1. Stored in cool and ventilation place, keep far away from heat and fire resources, keep the container closed.

2. From production date, shelf life is 12months.



9. Packing specifications

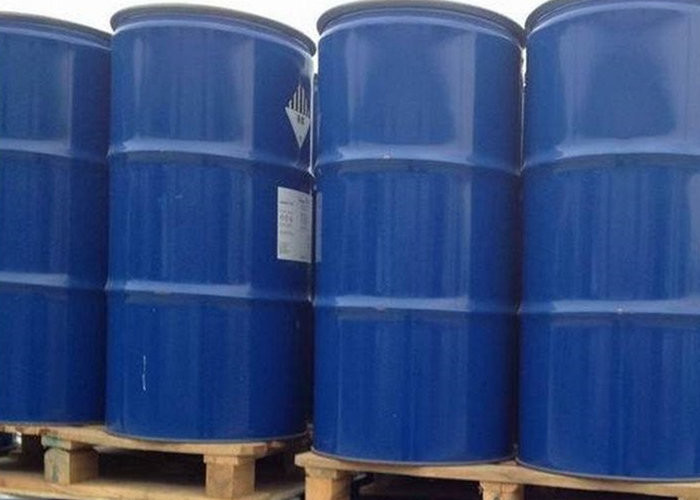

190kg/pail (new metal pail)



10. Safety

This product contains solvent, must do safeguard procedure, handle carefully, avoid contact with the skins and eyes, for other details, please refer to MSDS of this product.
