Clear Solvent Based Hydroxyl Acrylic Resin 2k Automobile Refinishing Paint

Basic Information
Place of Origin: china
Brand Name: WeiLi Resin®
Certification: ISO9001
Model Number: SE6673
Minimum Order Quantity: 5000KG
Price: Negotiable
Packaging Details: 200kg/drum
Delivery Time: 14 work days
Payment Terms: L/C, T/T
Supply Ability: 500t/month
Detail Information
Appearance: Clear Fe-Co Color: ≤1
Viscosity Pa.s/25℃: 3-6 Non-volatile %: 65±2
Acid Value MgKOH/g: 5-10 Hydroxyl Value: 100
Solvent: BAC/XY
High Light:

Clear Solvent Based Hydroxyl Acrylic Resin

,

Clear Hydroxyl Acrylic Resin

,

2k Automobile Refinishing Paint


Product Description

Solvent Based Hydroxyl Acrylic Resin 2k Automobile Refinishing Paint



SE6673 Hydroxyl Acrylic Resin



Product Introduction

SE6673 is an oily hydroxyl functional acrylic resin designed for high performance two-component primers and finishes, often used in solvent based 2K system of automobile repair and general industrial application and home appliances.



Features

High gloss, high fullness and leveling; Excellent weather resistance; Excellent chemical resistance; One time spraying of ABS





Applications

Automobile refinishing paint, metallic base coat, clear and pigmented top coats, polyurethane top coat, coloured paint





Properties

Component Appearance

Fe-Co

Color

Viscosity

Pa.s/25℃

Non-volatile

%

Acid value

mgKOH/g

Solvent Hydroxyl value
Acrylic ester copolymer Clear <1 3-6 65±2 5-10 BAC/XYL 100



Compatibility and solubility

XYL + BCS +
TYL + CAC +
BAC + CYC +

Remark:+ show soluble in/compatible in



Reference formula

Two component (High brightness paint) Diluent
(A component)
SE6673 80 XYL 40
BBG3777 0.2 TOL 5
BBG306 0.3 BAC 25
BBG052 0.1 CAC 15
PMA 8.0 PMA 15
10%sn 0.4
BAC/XYL 11.0
(B component) Bayer N3390

Ratio

A component: B component: diluent=100: 15: 80~100



Process conditions

▲ Baking condition:

(1) 65℃ x 60min, place 24hours for test

(2) Air drying

▲ Substrate: Sand plate tin



Test technical index

Test Item Test Method Reference Standard Test Standard

Test Result

(reference value)

Surface drying Blow cotton ball method ------ Not stick cotton ball 32min(25μm)
Hard drying Finger pressing method ------ No finger print 24h(25μm)
8h hardness Pencil scratch GB/T6739-96 ----- <HB
24h hardness Pencil scratch GB/T6739-96 ----- HB
Gloss 60 degree GB/T9754-88 ≥90 112
Hardness Pencil scratch GB/T6739-96 ≥2H 2H
Impact Impact method GB/T1732-93 ≥30Kg.cm 50cm(25μm)
Flexibility Bending method GB/T1731-93 ≤2mm 1mm
Adhesion Cross – cut method GB/T9286-98 100% 100%
Fullness Visual method ----- Excellent fullness, good brightness Excellent
Levelling property Visual method ----- Flat and smooth, no shrinkage hole Qualified
Ageing resistance QUV machine -----

500h no color change, no

falling off, gloss loss rate≤1%

Qualified
Acid resistance Soaking method GB/T9274-88 10%H2SO4 72h no bubbling, no falling off, no color change Qualified
Alkali resistance Soaking method GB/T9274-88 5%NaOH 48h no bubbling, no falling off, no color change Qualified



Safe storage and shelf life

1. Stored in cool and ventilation place, keep far away from heat and fire resources, keep the container closed.

2. From production date, shelf life is 12months.



Packing specifications

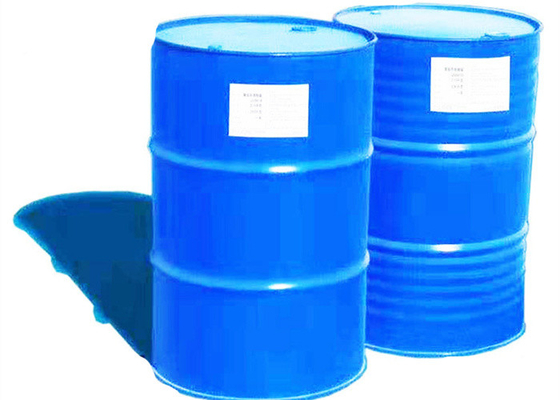

200kg/pail (new metal pail)



Safety

This product contains solvent, must do safeguard procedure, handle carefully, avoid contact with the skins and eyes, for other details, please refer to MSDS of this product.
