Product Details
Place of Origin: china
Brand Name: WeiLi Resin®
Certification: ISO9001
Model Number: SE2599A
Payment & Shipping Terms
Minimum Order Quantity: 5000KG
Price: Negotiable
Packaging Details: 200kg/drum
Delivery Time: 14 work days
Payment Terms: L/C, T/T
Supply Ability: 500t/month
Appearance: |
Clear Liquid |
Non-volatile %: |
52±2 |
Fe-Co Color: |
<1 |
Solvent: |
Butyl Acetate/Toluene/Isobutanol |
Tg ℃: |
102 |
Acid Value MgKOH/g: |
1-3 |
Viscosity Pa.s/25℃: |
18-35 |
System: |
1k |
Appearance: |
Clear Liquid |
Non-volatile %: |
52±2 |
Fe-Co Color: |
<1 |
Solvent: |
Butyl Acetate/Toluene/Isobutanol |
Tg ℃: |
102 |
Acid Value MgKOH/g: |
1-3 |
Viscosity Pa.s/25℃: |
18-35 |
System: |
1k |
Silver Paint Thermoplastic Acrylic Based Resin For Household Appliances
SE2599A Thermoplastic Acrylic Resin
Product Introduction
High hardness, high wear resistance, excellent arrangement of silver powder; Alcohol resistance;
Physical Property:
| Component | Appearance |
Fe-Co Color |
Viscosity Pa.s/25℃ |
Non-volatile % |
Acid value mgKOH/g |
Solvent |
Tg ℃ |
| Acrylic ester copolymer | clear | ≤1 | 18-35 | 50±2 | 1-3 | Butyl acetate/Toluene/Isobutanol | 102 |
Features
Application
Compatibility and solubility
| Xylene | + | Ethylene glycol monobutyl ether | + |
| Toluene | + | 120# | ○ |
| Butyl acetate | + | Isobutanol | + |
| Cyclohexanone | + | Methyl ethyl ketone | + |
Remark:+ show soluble in/compatible in ○ show partial soluble in/compatible in
S-100#
Reference formula
| Silver paint | Diluent | ||
| SE2599 | 60 | Toluene | 15 |
| ZX1065 | 10 | Isopropanol | 20 |
| 20%CAB-381-2 | 15 | Butyl acetate | 20 |
| Butyl acetate | 7.7 | Isobutanol | 10 |
| BBG333 | 0.3 | Ethylene glycol monobutyl ether | 10 |
| Toluene | 7.0 | Ethyl acetate | 25 |
Process conditions
▲ Baking condition: 65℃×30min, test the corrosion resistance index after 24h
▲ Substrate: ABS
Test technical index
| Test Item | Test Method | Reference Standard | Test Standard |
Test Result (reference value) |
| Gloss | 60 degree | GB/T9754-88 | ≥80 | 85 |
| Hardness | Pencil scratch | GB/T6739-96 | ≥HB | HB |
| Adhesion | Cross - cut method | GB/T9286-98 | 100% | 100% |
| Abrasion resistance | Wiping method | --------- | ≥385times | 500times (13μm) |
| Ethanol resistance | Wipe method | ---------- | 195 times without showing the bottom (500g) | 230times (13μm) |
| Wettability | Visual method | ---------- | Easy to disperse, no seeding in storage, no jelly | Qualified |
| Silver row property | Scratch coating method | ------ | The whiteness of silver powder and the oriented arrangement of silver powder have uniform gloss. | Excellent |
Safe storage and shelf life
1. Stored in cool and ventilation place, keep far away from heat and fire resources, keep the container closed.
2. From production date, shelf life is 12 months.
Packing specifications

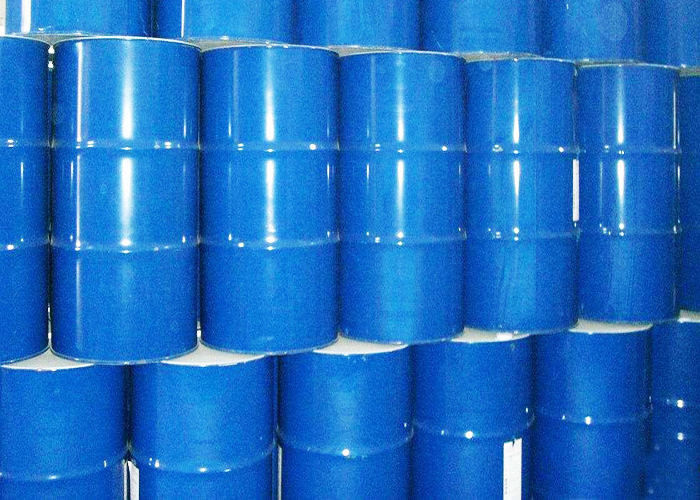

200kg/pail (new metal pail)
Safety
This product contains solvent, must do safeguard procedure, handle carefully, avoid contact with the skins and eyes, for other details, please refer to MSDS of this product.
