| Place of Origin: | china |
|---|---|
| Brand Name: | WeiLi Resin® |
| Certification: | ISO9001 |
| Model Number: | SE2599 |
| Minimum Order Quantity: | 5000KG |
| Price: | Negotiable |
| Packaging Details: | 200kg/drum |
| Delivery Time: | 14 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500t/month |

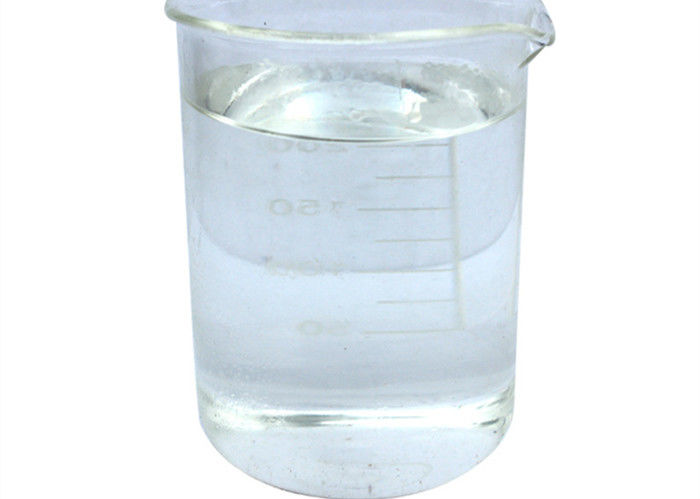

| Appearance: | Clear Liquid | Fe-Co Color: | <1 |
|---|---|---|---|
| Non-volatile %: | 50±2 | Acid Value MgKOH/g: | 1-3 |
| Tg ℃: | 102 | System: | 1k |
| Viscosity Pa.s/25℃: | 18-35 | Solvent: | Butyl Acetate/Toluene/Isobutanol |
| Highlight: | 1k Thermoplastic Acrylic Resin,Thermoplastic wear resistance Resin,Clear liquid Thermoplastic Acrylic Resin |
||
SE2599 Thermoplastic Acrylic Resin
Product Introduction
High hardness, high wear resistance, excellent arrangement of silver powder; Alcohol resistance;
Physical Property:
| Component | Appearance |
Fe-Co Color |
Viscosity Pa.s/25℃ |
Non-volatile % |
Acid value mgKOH/g |
Solvent |
Tg ℃ |
| Acrylic ester copolymer | clear | ≤1 | 18-35 | 50±2 | 1-3 | Butyl acetate/Toluene/Isobutanol | 102 |
Features
Application
Compatibility and solubility
| Xylene | + | Ethylene glycol monobutyl ethe* | + |
| Toluene | + | 120# | ○ |
| Butyl acetate | + | Isobutanol | + |
| Cyclohexanone | + | Methyl ethyl ketone | + |
Remark:+ show soluble in/compatible in ○ show partial soluble in/compatible in
S-100#
Reference formula
| Silver paint | Diluent | ||
| SE2599 | 60 | Toluene | 15 |
| ZX1065 | 10 | Isopropanol | 20 |
| 20%CAB-381-2 | 15 | Butyl acetate | 20 |
| Butyl acetate | 7.7 | Isobutanol | 10 |
| BBG333 | 0.3 | Ethylene glycol monobutyl ethe* | 10 |
| Toluene | 7.0 | Ethyl acetate | 25 |
Process conditions
▲ Baking condition: 65℃×30min, test the corrosion resistance index after 24h
▲ Substrate: ABS
Test technical index
| Test Item | Test Method | Reference Standard | Test Standard |
Test Result (reference value) |
| Gloss | 60 degree | GB/T9754-88 | ≥80 | 85 |
| Hardness | Pencil scratch | GB/T6739-96 | ≥HB | HB |
| Adhesion | Cross - cut method | GB/T9286-98 | 100% | 100% |
| Abrasion resistance | Wiping method | --------- | ≥385times | 500times (13μm) |
| Ethanol resistance | Wipe method | ---------- | 195 times without showing the bottom (500g) | 230times (13μm) |
| Wettability | Visual method | ---------- | Easy to disperse, no seeding in storage, no jelly | Qualified |
| Silver row property | Scratch coating method | ------ | The whiteness of silver powder and the oriented arrangement of silver powder have uniform gloss. | Excellent |
Safe storage and shelf life
1. Stored in cool and ventilation place, keep far away from heat and fire resources, keep the container closed.
2. From production date, shelf life is 12 months.
Packing specifications

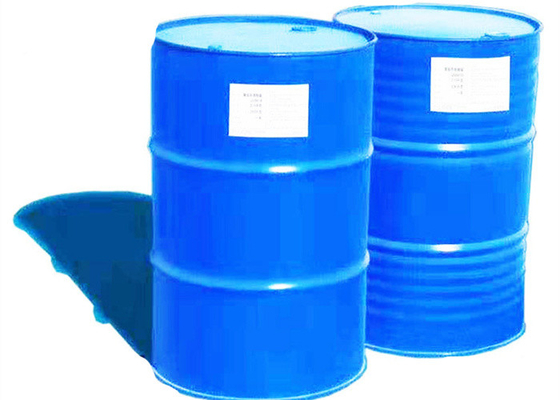

200kg/pail (new metal pail)
Safety
This product contains solvent, must do safeguard procedure, handle carefully, avoid contact with the skins and eyes, for other details, please refer to MSDS of this product.
