Appearance: | Clear Liquid | Fe-Co Color: | <1 |
---|---|---|---|
Non-volatile %: | 52±2 | Acid Value MgKOH/g: | ≤2 |
System: | 1k | Viscosity Pa.s/25℃: | 22-35 |
Tg ℃: | 98 | Solvent: | Toluene/Methyl Isobutyl Ketone |
Highlight: | Thermoplastic Clear Acrylic Resin,Paint water based acrylic resin,High Hardness Clear Acrylic Resin |
High Hardness Thermoplastic Clear Acrylic Resin For Plastic Silver Paint
SE2598A Thermoplastic Acrylic Resin
Product Introduction
High performance paint produced by this thermoplastic acrylic resin SE2598A, due to good aluminum orientation and pigment wettability, good hardness and adhesion, good oil resistance and plasticity resistance, alcohol resistance, is widely used in 3C products (computer, communication, consumption), household appliances, metal equipment, wood furniture, floor, automobile, construction machinery and other fields.
Physical Property:
Component | Appearance |
Fe-Co Color |
Viscosity Pa.s/25℃ |
Non-volatile % |
Acid value mgKOH/g |
Solvent |
Tg ℃ |
Acrylic ester copolymer | clear | ≤1 | 22-35 | 52±2 | ≤2 | Toluene/Methyl isobutyl ketone | 98 |
Features
Application
Compatibility and solubility
Xylene | + | Ethylene glycol monobutyl ethe* | + |
Toluene | + | 120# | ○ |
Butyl acetate | + | Isobutanol | + |
Cyclohexanone | + | Methyl ethyl ketone | + |
Remark:+ show soluble in/compatible in ○ show partial soluble in/compatible in
S-100#
Reference formula
Silver paint | Diluent | ||
SE2598 | 60 | Toluene | 15 |
ZX1065 | 10 | Isopropanol | 20 |
20%CAB-381-2 | 15 | Butyl acetate | 20 |
Butyl acetate | 7.7 | Isobutanol | 10 |
BBG333 | 0.3 | Ethylene glycol monobutyl ethe* | 10 |
Toluene | 7.0 | Ethyl acetate | 25 |
Process conditions
▲ Baking condition: 65℃×30min, test the corrosion resistance index after 24h
▲ Substrate: ABS
Test technical index
Test Item | Test Method | Reference Standard | Test Standard |
Test Result (reference value) |
Gloss | 60 degree | GB/T9754-88 | ≥80 | 85 |
Hardness | Pencil scratch | GB/T6739-96 | ≥HB | HB |
Adhesion | Cross - cut method | GB/T9286-98 | 100% | 100% |
Abrasion resistance | Wiping method | --------- | ≥385times | 485times (13μm) |
Ethanol resistance | Wipe method | ---------- | 195 times without showing the bottom (500g) | 220 times (13μm) |
Wettability | Visual method | ---------- | Easy to disperse, no seeding in storage, no jelly | Qualified |
Water resistance | 40℃ | ---------- | 8 days | ok |
Silver row property | Scratch coating method | ------ | The whiteness of silver powder and the oriented arrangement of silver powder have uniform gloss. | Excellent |
Safe storage and shelf life
1. Stored in cool and ventilation place, keep far away from heat and fire resources, keep the container closed.
2. From production date, shelf life is 12 months.
Packing specifications

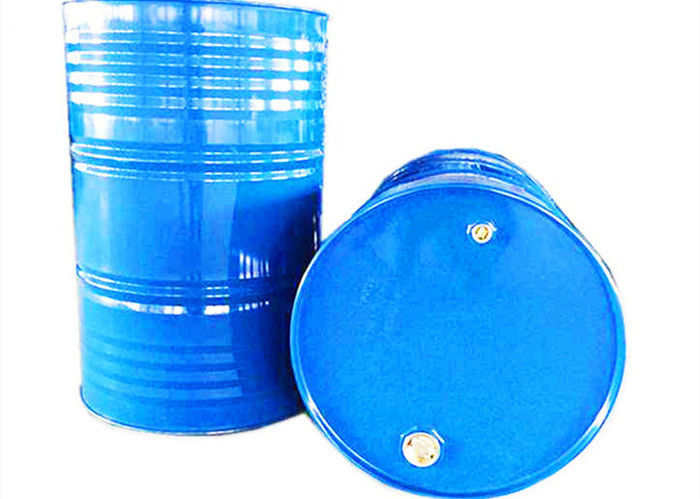

200kg/pail (new metal pail)
Safety
This product contains solvent, must do safeguard procedure, handle carefully, avoid contact with the skins and eyes, for other details, please refer to MSDS of this product.
