| Place of Origin: | china |
|---|---|
| Brand Name: | WeiLi Resin® |
| Certification: | ISO9001 |
| Model Number: | SE2524 |
| Minimum Order Quantity: | 5000KG |
| Price: | Negotiable |
| Packaging Details: | 200kg/drum |
| Delivery Time: | 14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500t/month |

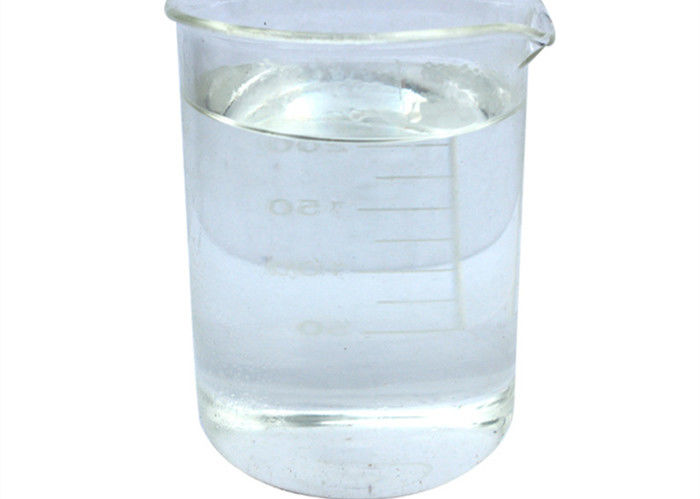

| Appearance: | Clear | Fe-Co Color: | <1 |
|---|---|---|---|
| Viscosity Pa.s/25℃: | 22-35 | Non-volatile %: | 50±2 |
| Acid Value MgKOH/g: | <1 | Tg ℃: | 25 |
| Highlight: | water resistant resin,transparent acrylic resin,Screen Printing Inks Thermoplastic Acrylic Resin |
||
Thermoplastic acrylic resin is synthetized by different acrylic monomers, its main advantages are the stability of light and its resistance to hydrolysis. In general, during synthesis, thermoplastic resins use a high content of methyl methacrylate in their polymerization backbone chain to provide excellent hardness and external durability, while improving the wettability of pigments and/or providing cross-linking or self-crosslinking capabilities, other acrylic monomers can also be used to give the acrylic resin the ability to sulfonate or phosphoric acid functionalities.
1. Features
Excellent adhesion, high gloss, excellent flexibility and pigment dispersity
2. Applications
Screen printing ink, gravure printing ink, paper gloss oil, transfer printing ink
3. Properties
| Component | Appearance |
Fe-Co Color |
Viscosity Pa.s/25℃ |
Non-volatile % |
Acid value mgKOH/g |
Solvent |
Tg ℃ |
| Acrylic ester copolymer | Clear | <1 | 22-35 | 50±2 | <1 | S-100# | 25 |
| XYL | + | BCS | + |
| TOL | + | 120# | ○ |
| BAC | + | IBA | + |
| CYC | + | MEK | + |
Remark:+ show soluble in/compatible in ○ show partial soluble in/compatible in
5. Reference formula
|
Gravure white ink
|
Diluent | ||
| SE2524 | 40 | TOL | 15 |
| BBG333 | 0.3 | IPA | 10 |
| BBG052 | 0.3 | BAC | 32 |
| BAC | 15 | S-100# | 10 |
| BBG306 | 0.2 | BCS | 8 |
| S-100# | 9.2 | EAC | 25 |
| SE2525 white paste | 35 | ||
6. Process conditions
▲ Baking condition: air drying
▲ Substrate: glossy paper
7. Test technical index
| Test Item | Test Method | Reference Standard | Test Standard |
Test Result (reference value) |
| Gloss | 60 degree | GB/T9754-88 | ≥70 | 82 |
| Hardness | Pencil scratch | GB/T6739-96 | ≥6B | 6B |
| Adhesion | Cross - cut method | GB/T9286-98 | 100% | 100% |
| Wettability | Visual method | ---------- | Easy to disperse, no seeding in storage, no jelly | Qualified |
| Flexibility | Paint film bending tester | GB/T1731-1993 | 1µm | 1µm |
8. Safe storage and shelf life
1. Stored in cool and ventilation place, keep far away from heat and fire resources, keep the container closed.
2. From production date, shelf life is 12months.

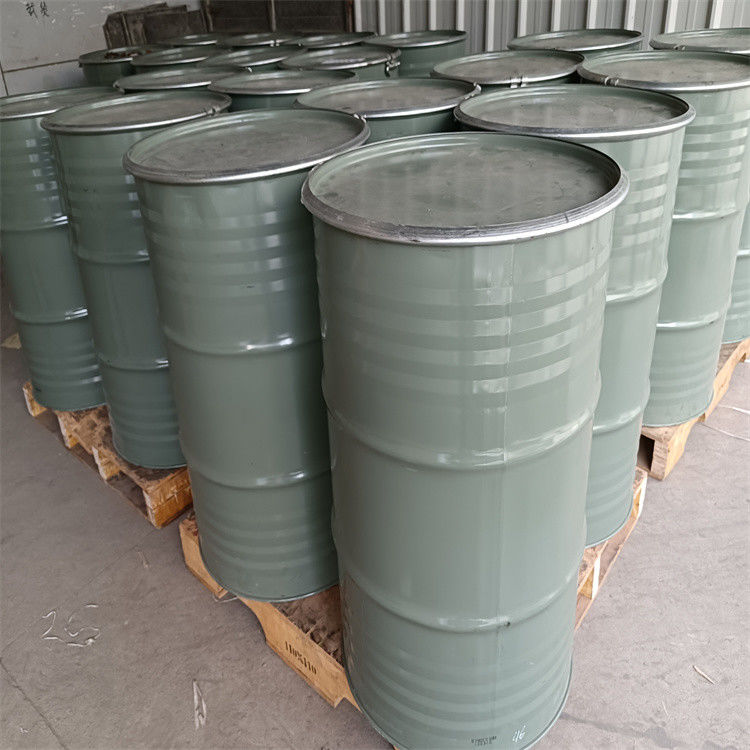

9. Packing specifications
190kg/pail (new metal pail)
10. Safety
This product contains solvent, must do safeguard procedure, handle carefully, avoid contact with the skins and eyes, for other details, please refer to MSDS of this product.
