| Place of Origin: | china |
|---|---|
| Brand Name: | WeiLi Resin® |
| Certification: | ISO9001 |
| Model Number: | SE2560 |
| Minimum Order Quantity: | 5000KG |
| Price: | Negotiable |
| Packaging Details: | 200kg/drum |
| Delivery Time: | 14 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500t/month |
| Appearance: | Clear | Fe-Co Color: | ＜1 |
|---|---|---|---|
| Viscosity Pa.s/25℃: | 15-25 | Non-volatile %: | 50±2 |
| Acid Value MgKOH/g: | 0-2 | Tg ℃: | 60 |
| Highlight: | thermoplastic resin,transparent acrylic resin,Thermoplastic Water Resistant Resin |
||
Thermoplastic acrylic resin is synthetized by different acrylic monomers, its main advantages are the stability of light and its resistance to hydrolysis.
1. Features
Excellent pigment dispersity, superior aluminum powder distribution and orientation, water resistance, alcohol resistance, UV recoatability
2. Applications

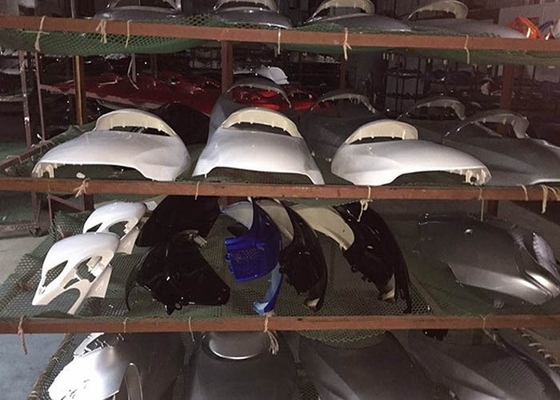

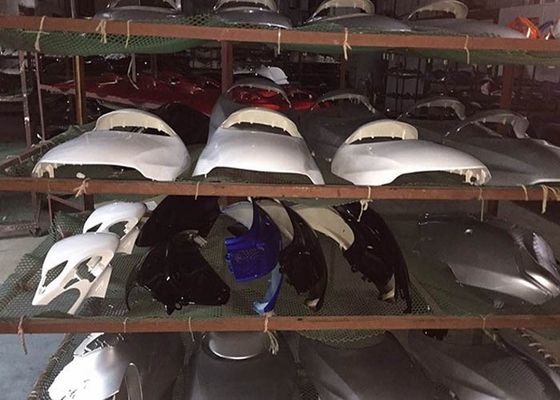

UV plastic aluminum primer, colored paint
3. Properties
| Component | Appearance |
Fe-Co Color |
Viscosity Pa.s/25℃ |
Non-volatile % |
Acid value mgKOH/g |
Solvent |
Tg ℃ |
| Acrylic ester copolymer | clear | ＜1 | 15-25 | 50±2 | 0-2 | TOL/IBA | 60 |
4.0Compatibility and solubility
| XYL | + | BCS | + |
| TOL | + | 120# | ○ |
| BAC | + | IBA | + |
| CYC | + | MEK | + |
Remark:+ show soluble in/compatible in ○ show partial soluble in/compatible in
5. Reference formula
|
Aluminum paint
|
Diluent | ||
| SE2560 | 60 | TOL | 15 |
| ZX1056 | 10 | IPA | 20 |
| 20% CAB-381-2 | 15 | BAC | 15 |
| BAC | 7.7 | IBA | 15 |
| LTW | 1.5 | EAC | 25 |
| BBG358 | 0.3 | BCS | 10 |
6. Process conditions
▲ Baking condition: 65℃ x 30min, corrosion resistance index is measured after 24hours
▲ Substrate: ABS
7. Test technical index
| Test Item | Test Method | Reference Standard | Test Standard |
Test Result (reference value) |
| Gloss | 60 degree | GB/T9754-88 | ≥80 | 80 |
| Hardness | Pencil scratch | GB/T6739-96 | ≥HB | HB |
| Adhesion | Cross - cut method | GB/T9286-98 | 100% | 100% |
| Abrasion resistance | Wiping method | --------- | ≥350times | 385times (13μm) |
| Alcohol resistance | Wiping method | --------- | No exposing base for 50times(500g) | 70 times (13μm) |
| Wettability | Visual method | ---------- | Easy to disperse, no seeding in storage, no jelly | Qualified |
| Silver dropping | Peeling off method | ---------- | No silver dropping | Qualified |
8. Safe storage and shelf life
1. Stored in cool and ventilation place, keep far away from heat and fire resources, keep the container closed.
2. From production date, shelf life is 12months.
9. Packing specifications

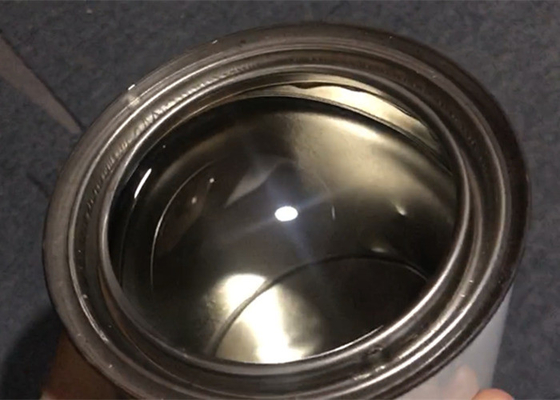

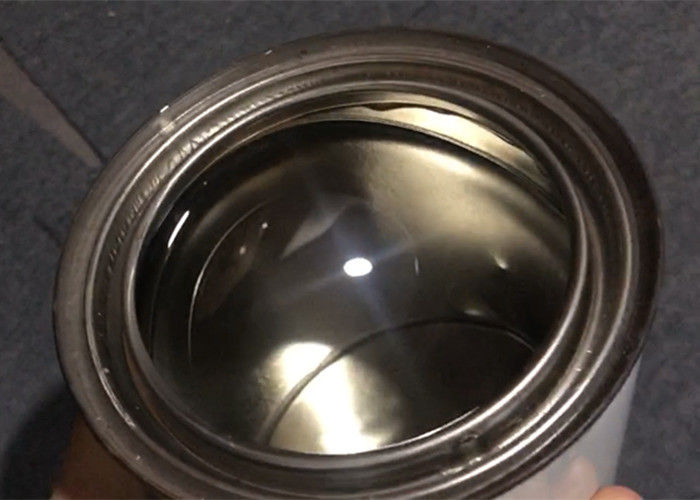

200kg/pail (new metal pail)
10. Safety
This product contains solvent, must do safeguard procedure, handle carefully, avoid contact with the skins and eyes, for other details, please refer to MSDS of this product.
