Appearance: | Clear | Fe-Co Color: | <1 |
---|---|---|---|
Viscosity Pa.s/25℃: | 10-15 | Non-volatile %: | 50±2 |
Acid Value MgKOH/g: | 1-3 | Tg ℃: | 70 |
Highlight: | thermoplastic resin,water resistant resin,Light Stability Thermoplastic Acrylic Resin |
Thermoplastic acrylic resin is synthetized by different acrylic monomers, its main advantages are the stability of light and its resistance to hydrolysis. In general, during synthesis, thermoplastic resins use a high content of methyl methacrylate in their polymerization backbone chain to provide excellent hardness and external durability, while improving the wettability of pigments and/or providing cross-linking or self-crosslinking capabilities.
1. Features
High gloss, excellent pigment dispersity, UV adherence and PU recoatability, excellent aluminum powder distribution and orientation
2. Applications
Used as rubber primer and PU primer
3. Properties
Component | Appearance |
Fe-Co Color |
Viscosity Pa.s/25℃ |
Non-volatile % |
Acid value mgKOH/g |
Solvent |
Tg ℃ |
Acrylic ester copolymer | clear | <1 | 10-15 | 50±2 | 1-3 | TOL/BAC/IBA | 70 |
4. Compatibility and solubility
XYL | + | BCS | + |
TOL | + | 120# | ○ |
BAC | + | IBA | + |
CYC | + | MEK | + |
Remark:+ show soluble in/compatible in ○ show partial soluble in/compatible in
5. Reference formula
Aluminum paint
|
Diluent | ||
SE2574 | 60 | TOL | 15 |
ZX1065 | 10 | IPA | 20 |
20% CAB-381-2 | 15 | BAC | 15 |
BAC | 7.7 | IBA | 15 |
BBG358 | 0.3 | BCS | 10 |
TOL | 7.0 | EAC | 25 |
6. Process conditions
▲ Baking condition: 65℃ x 30min, corrosion resistance index is measured after 24hours
▲ Substrate: ABS
7. Test technical index
Test Item | Test Method | Reference Standard | Test Standard |
Test Result (reference value) |
Gloss | 60 degree | GB/T9754-88 | ≥80 | 85 |
Hardness | Pencil scratch | GB/T6739-96 | ≥HB | HB |
Adhesion | Cross - cut method | GB/T9286-98 | 100% | 100% |
Abrasion resistance | Wiping method | --------- | ≥308times | 320times (13μm) |
Alcohol resistance | Wiping method | --------- | No exposing base for 45times(500g) | 65 times (13μm) |
Wettability | Visual method | ---------- | Easy to disperse, no seeding in storage, no jelly | Qualified |
Aluminum distribution and orientation | Scraping method | ---------- | Aluminum powder has high whiteness, uniform gloss | Excellent |
8. Safe storage and shelf life
1. Stored in cool and ventilation place, keep far away from heat and fire resources, keep the container closed.
2. From production date, shelf life is 12months.
9. Packing specifications

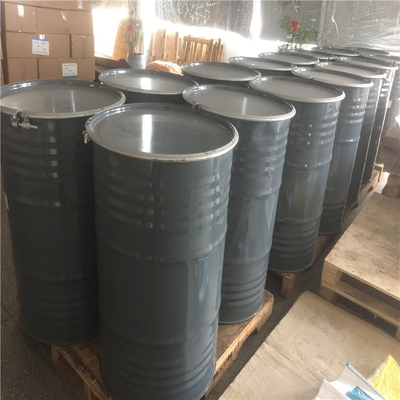

200kg/pail (new metal pail)
10. Safety
This product contains solvent, must do safeguard procedure, handle carefully, avoid contact with the skins and eyes, for other details, please refer to MSDS of this product.
