| Place of Origin: | china |
|---|---|
| Brand Name: | WeiLi Resin® |
| Certification: | ISO9001 |
| Model Number: | SE2466 |
| Minimum Order Quantity: | 5000KG |
| Price: | Negotiable |
| Packaging Details: | 200kg/drum |
| Delivery Time: | 14 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500t/month |
| Appearance: | A Little Cloudy, Yellowish | Fe-Co Color: | ≤2 |
|---|---|---|---|
| Viscosity Pa.s/25℃: | 0.5-1.5 | Non-volatile %: | 40±2 |
| Acid Value MgKOH/g: | 13-18 | Tg ℃: | 66 |
| High Light: | thermoplastic resin,water resistant resin,PP Substrates Thermoplastic Acrylic Resin |
||
PP plastic substrates are difficult to adhere. SE 2466 with superior adhesion to PP plastics with excellent appearance and flexibility. These solutions will reduce the need for priming and or pre-treating plastic surfaces with no limitations to shape or form.
1. Features
Excellent pigment dispersity, superior aluminum powder distribution and orientation, one-time spraying, recoatability
2. Applications
PP substrate special resin, plastic paint
3. Properties
| Component | Appearance |
Fe-Co Color |
Viscosity Pa.s/25℃ |
Non-volatile % |
Acid value mgKOH/g |
Solvent |
Tg ℃ |
| Modified Acrylic ester copolymer | A little cloudy, yellowish | ≤2 | 0.5-1.5 | 40±2 | 13-18 | TOL | 66 |
4. Compatibility and solubility
| XYL | + | BCS | + |
| TOL | + | 120# | ○ |
| BAC | + | IBA | + |
| CYC | + | MEK | + |
Remark:+ show soluble in/compatible in ○ show partial soluble in/compatible in
5. Reference formula
|
Aluminum paint
|
Diluent | ||
| SE2466 | 60 | TOL | 15 |
| ZX1056 | 10 | IPA | 20 |
| 20% CAB-381-2 | 15 | BAC | 15 |
| BAC | 7.7 | IBA | 15 |
| BBG358 | 0.3 | BCS | 10 |
| TOL | 7.0 | EAC | 25 |
6. Process conditions
▲ Baking condition: 65℃ x 30min, corrosion resistance index is measured after 24hours
▲ Substrate: PP
7. Test technical index
| Test Item | Test Method | Reference Standard | Test Standard |
Test Result (reference value) |
| Gloss | 60 degree | GB/T9754-88 | ≥80 | 85 |
| Hardness | Pencil scratch | GB/T6739-96 | ≥HB | HB |
| Adhesion | Cross - cut method | GB/T9286-98 | 100% | 100% |
| Abrasion resistance | Wiping method | --------- | ≥200times | 250 times (13μm) |
| Alcohol resistance | Wiping method | --------- | No exposing base for 30times(500g) | 35 times (13μm) |
| Wettability | Visual method | ---------- | Easy to disperse, no seeding in storage, no jelly | Qualified |
| Silver dropping | Peeling off method | ---------- | Silver dropping | Qualified |
| 100℃ boiled | Visual method | --------- | No change in paint film for 1h | Qualified |
| Aluminum distribution and orientation | Scraping method | --------- | Aluminum powder has high whiteness, uniform gloss | Excellent |
8. Safe storage and shelf life
1. Stored in cool and ventilation place, keep far away from heat and fire resources, keep the container closed.
2. From production date, shelf life is 12months.
9. Packing specifications

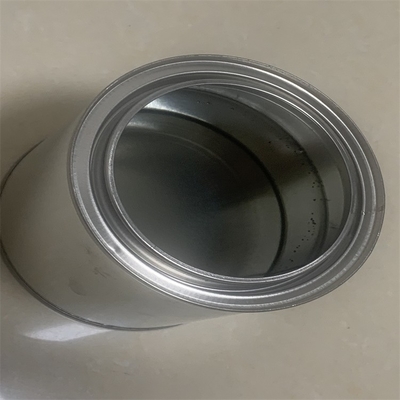

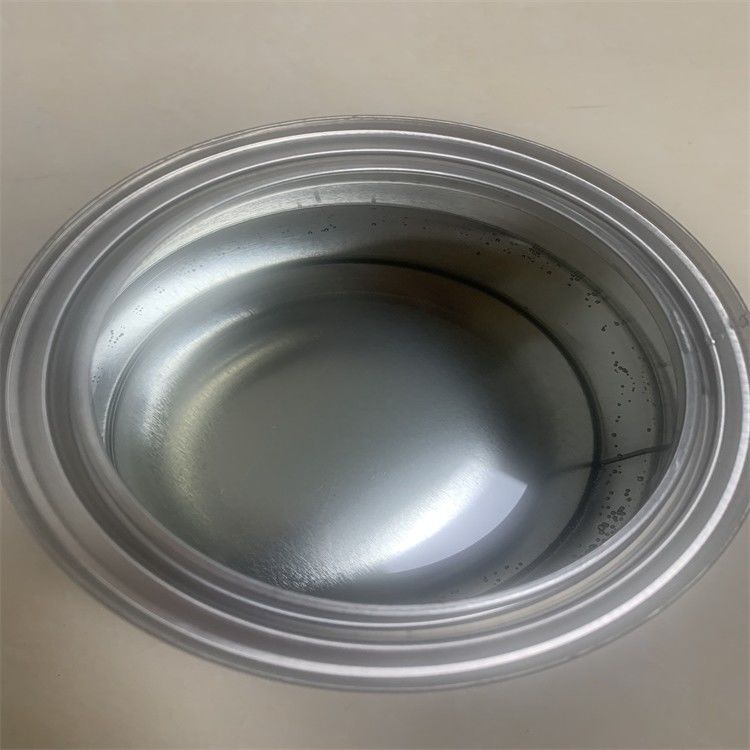

200kg/pail (new metal pail)
10. Safety
This product contains solvent, must do safeguard procedure, handle carefully, avoid contact with the skins and eyes, for other details, please refer to MSDS of this product.
