| Place of Origin: | china |
|---|---|
| Brand Name: | WeiLi Resin® |
| Certification: | ISO9001 |
| Model Number: | SE2599 |
| Minimum Order Quantity: | 5000KG |
| Price: | Negotiable |
| Packaging Details: | 200kg/drum |
| Delivery Time: | 14 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500t/month |
| Appearance: | Clear | Fe-Co Color: | ＜1 |
|---|---|---|---|
| Viscosity Pa.s/25℃: | 18-35 | Non-volatile %: | 50±2 |
| Acid Value MgKOH/g: | ≤3 | Tg ℃: | 102 |
| High Light: | thermoplastic resin,water resistant resin,High Hardness Acrylic Thermoplastic Resin |
||
The biggest feature of the thermoplastic acrylic resin produced by our company is on the basis of not adding adhesion promoter, the aluminum pigmented paint or metallic paint has excellent adhesion to the substrates.
High performance paint produced by this acrylic resin SE2599, due to good aluminum orientation and pigment wettability, good hardness and adhesion, good oil resistance and plasticity resistance, alcohol resistance, is widely used in 3C products (computer, communication, consumption), household appliances, metal equipment, wood furniture, floor, automobile, construction machinery and other fields.
This thermoplastic acrylic resin is especially recommended to be used in aluminum pigmented paint, metallic paint.
1. Features
High hardness, high abrasion, excellent aluminum powder distribution and orientation, alcohol resistance
2. Applications
High wear resistance, high alcohol resistant plastic aluminum powder paint
3. Properties
| Component | Appearance |
Fe-Co Color |
Viscosity Pa.s/25℃ |
Non-volatile % |
Acid value mgKOH/g |
Solvent |
Tg ℃ |
| Acrylic ester copolymer | clear | ＜1 | 18-35 | 50±2 | ≤3 | TOL/BAC/IBA | 102 |
4. Compatibility and solubility
| XYL | + | BCS | + |
| TOL | + | 120# | ○ |
| BAC | + | IBA | + |
| CYC | + | MEK | + |
Remark:+ show soluble in/compatible in ○ show partial soluble in/compatible in
5. Reference formula
|
Aluminum paint
|
Diluent | ||
| SE2599 | 60 | TOL | 15 |
| ZX1065 | 10 | IPA | 20 |
| 20% CAB-381-2 | 15 | BAC | 20 |
| BAC | 7.7 | IBA | 10 |
| BBG333 | 0.3 | BCS | 10 |
| TOL | 7.0 | EAC | 25 |
6. Process conditions
▲ Baking condition: 65℃ x 30min, corrosion resistance index is measured after 24hours
▲ Substrate: ABS
7. Test technical index
| Test Item | Test Method | Reference Standard | Test Standard |
Test Result (reference value) |
| Gloss | 60 degree | GB/T9754-88 | ≥80 | 85 |
| Hardness | Pencil scratch | GB/T6739-96 | ≥HB | HB |
| Adhesion | Cross - cut method | GB/T9286-98 | 100% | 100% |
| Abrasion resistance | Wiping method | --------- | ≥385times | 470times (13μm) |
| Alcohol resistance | Wiping method | --------- | No exposing base for 195times(500g) | 280 times (13μm) |
| Wettability | Visual method | ---------- | Easy to disperse, no seeding in storage, no jelly | Qualified |
| Aluminum distribution and orientation | Scraping method | ---------- | Aluminum powder has high whiteness, uniform gloss | Excellent |
8. Safe storage and shelf life
1. Stored in cool and ventilation place, keep far away from heat and fire resources, keep the container closed.
2. From production date, shelf life is 12months.
9. Packing specifications

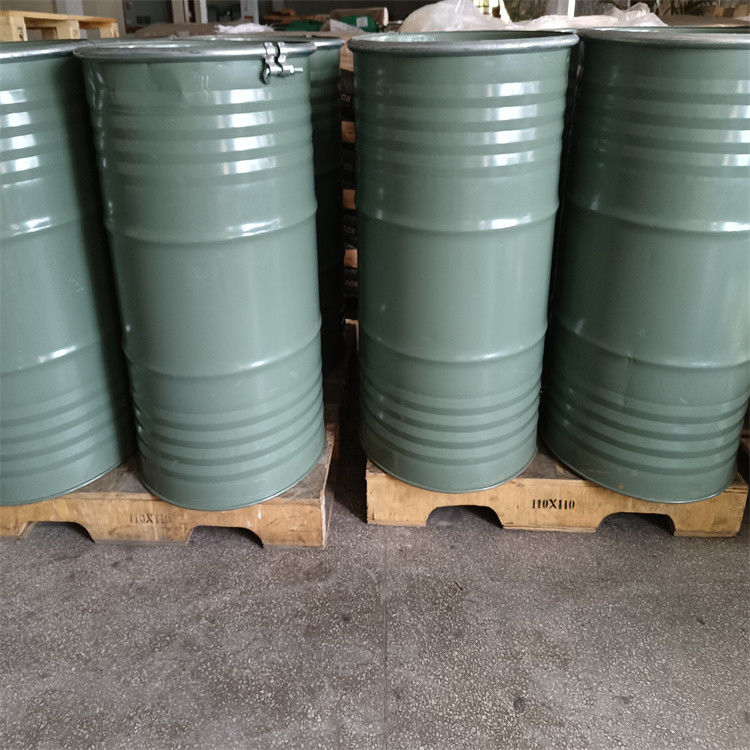

200kg/pail (new metal pail)
10. Safety
This product contains solvent, must do safeguard procedure, handle carefully, avoid contact with the skins and eyes, for other details, please refer to MSDS of this product.
