| Place of Origin: | china |
|---|---|
| Brand Name: | WeiLi Resin® |
| Certification: | ISO9001 |
| Model Number: | SE5726 |
| Minimum Order Quantity: | 5000KG |
| Price: | Negotiable |
| Packaging Details: | 200kg/drum |
| Delivery Time: | 14 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500t/month |
| Appearance: | Clear, Yellowish | Fe-Co Color: | ≤2 |
|---|---|---|---|
| Viscosity Pa.s/25℃: | 1.5-3 | Non-volatile %: | 68±2 |
| Acid Value MgKOH/g: | 12-18 | Solvent: | XYL/PMA/ NBA |
| Highlight: | weather resistant resin,liquid acrylic resin,Amino Curing Glass Baking Coatings |
||
1. Features
Excellent adhesion, flexibility and gloss, excellent water resistance and alcohol resistance, it can be used for amine curing and also can be used for amino curing.
2. Applications

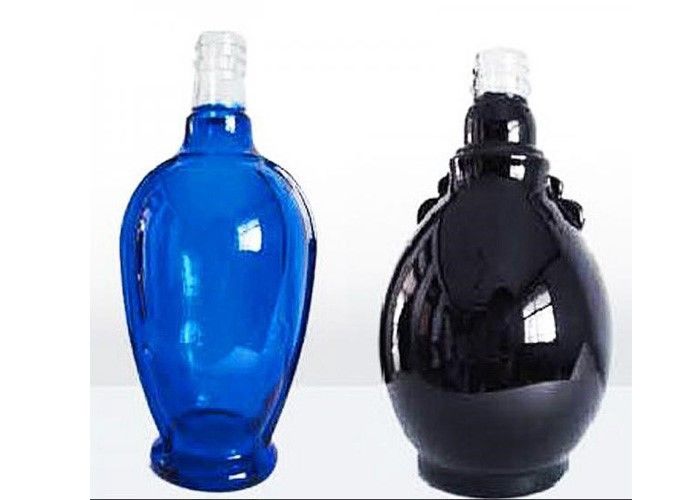

Glass wine bottles, general glass baking paint, metal anti corrosion, metal baking paint
3. Properties
| Component | Appearance |
Fe-Co Color |
Viscosity Pa.s/25℃ |
Non-volatile % |
Acid value mgKOH/g |
Solvent |
| Acrylic modified copolymer | Clear, yellowish | ≤2 | 1.5-3 | 68±2 | 12-18 |
XYL/PMA/ NBA |
4. Compatibility and solubility
| XYL | + | BCS | + |
| TYL | + | CAC | + |
| BAC | + | IBA | + |
| CYC | + | NBA | + |
Remark:+ show soluble in/compatible in
5. Reference formula
|
Transparent red
|
Diluent | ||
| SE5726 | 60.0 | XYL | 40 |
| Red color concentrate | 8.0 | TOL | 25 |
| BBG306 | 0.2 | BAC | 15 |
| BBG052 | 0.1 | CAC | 10 |
| XYL/IBA | 37.7 | IBA | 10 |
| Z-6040 | 2.0 | ||
| (B component) Aliphatic amine T-31 | |||
A component resin: B component (T-31): diluent=4: 1: 2
6. Process conditions
▲ Baking condition: (1) 150℃ x 30min
▲ Substrate: glass wine bottle
7. Test technical index
| Test Item | Test Method | Reference Standard | Test Standard |
Test Result (reference value) |
| Hardness | Pencil scratch | GB/T6739-96 | ≥2H | 4H |
| Gloss | 60degree | GB/T9754-88 | ≥85 | 97 |
| Adhesion | Cross -cut method | GB/T9286-98 | 100% | 100% |
|
Alcohol resistance 99.7% |
Soaking method | ------- | ≥ 4h | The paint film did not change for 4hours |
| Water resistance | Water soaking method | --------- | No color change, no bubbling, no falling off | >24h |
| Salt fog resistance | Neutral salt fog | GB/T1771-91 | Unilateral corrosion not exceeding 3mm | 100h |
| Acid resistance | Soaking method | GB/T9274-88 | 10%H2SO4 24h no bubbling, no falling off, no color change | Qualified |
| Alkaline resistance | Soaking method | GB/T9274-88 | 5%NaOH24h no bubbling, no falling off, no color change | Qualified |
8. Safe storage and shelf life
1. Stored in cool and ventilation place, keep far away from heat and fire resources, keep the container closed.
2. From production date, shelf life is 12months.
9. Packing specifications
200kg/pail (new metal pail)
10. Safety
This product contains solvent, must do safeguard procedure, handle carefully, avoid contact with the skins and eyes, for other details, please refer to MSDS of this product.
