| Place of Origin: | china |
|---|---|
| Brand Name: | WeiLi Resin® |
| Certification: | ISO9001 |
| Model Number: | SE3640 |
| Minimum Order Quantity: | 5000KG |
| Price: | Negotiable |
| Packaging Details: | 200kg/drum |
| Delivery Time: | 14 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500t/month |
| Appearance: | Clear | Fe-Co Color: | <1 |
|---|---|---|---|
| Viscosity Pa.s/25℃: | 5-8 | Non-volatile %: | 60±2 |
| Acid Value MgKOH/g: | 7-12 | Solvent: | XYL/IBA |
| High Light: | flexible acrylic resin,liquid acrylic resin,Good Flexibility Thermosetting Acrylic Resin |
||
1. Features
Excellent flexibility, adhesion, multilayer recoating, can recoat PU, UV varnish paint
2. Applications

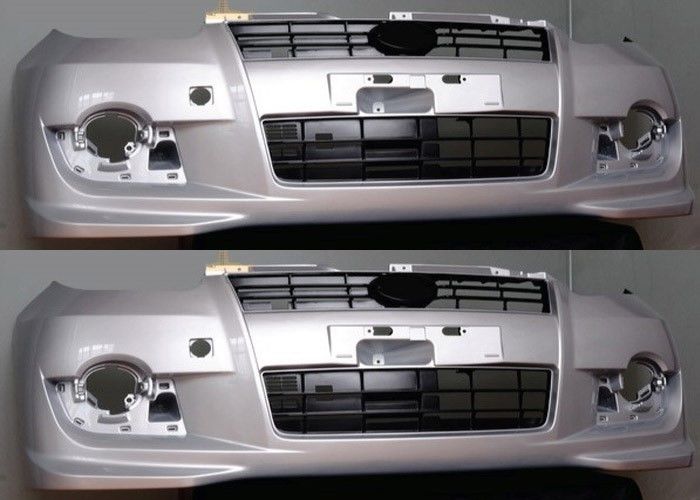

Hardware colored baking paint, silver powder baking paint, baking paint of UV base coat
3. Properties
| Component | Appearance |
Fe-Co Color |
Viscosity Pa.s/25℃ |
Non-volatile % |
Acid value mgKOH/g |
Solvent |
| Acrylic copolymer | Clear | <1 | 5-8 | 60±2 | 7-12 | XYL/IBA |
4. Compatibility and solubility
| XYL | + | BCS | + |
| Trimethylbenzene | + | CAC | + |
| BAC | + | IBA | + |
| CYC | + | NBA | + |
Remark:+ show soluble in/compatible in
5. Reference formula
| White colored top coat | Diluent | ||
| SE3640 | 55.0 | XYL | 50 |
| HE582-3 | 22.0 | TOL | 10 |
| BBG306 | 0.2 | BAC | 10 |
| BBG052 | 0.1 | CAC | 15 |
| E-44 | 4.0 | IBA | 15 |
| XYL/IBA | 8.7 | ||
| Silver powder | 8.0 | ||
| BBG1063 | 2.0 | ||
6. Process conditions
▲ Baking condition: (1) 150℃ x 30min
▲ Substrate: Sand plate tin
7. Test technical index
| Test Item | Test Method | Reference Standard | Test Standard |
Test Result (reference value) |
| Hardness | Pencil scratch | GB/T6739-96 | 2H | |
| Gloss | 60degree | GB/T9754-88 | ≥85 | 90 |
| Adhesion | The case method | GB/T9286-98 | 100% | 100% |
| Alcohol resistance | Wiping method | ------- | 250 times not grinning(500g) | 300 times(20μm) |
| Impact | Impact method | GB/T1732-93 | ≥50kg.cm | 50cm(20μm) |
| Flexibility | Bending method | GB/T1732-93 | ≥2mm | 1mm |
| Water boiling resistance | Boiling water | ------- | No color change, not bubbling, not falling off | 360min |
| Salt fog resistance | Neutral salt fog | GB/T1771-91 | Unilateral corrosion not exceeding 3mm | 124h |
| Acid resistance | Soaking method | GB/T9274-88 | 10%H2SO4 48h not bubbling, not falling off, no color change | Qualified |
| Alkaline resistance | Soaking method | GB/T9274-88 | 5%NaOH24h not bubbling, not falling off, no color change | Qualified |
8. Safe storage and shelf life
1. Stored in cool and ventilation place, keep far away from heat and fire resources, keep the container closed.
2. From production date, shelf life is 12 months.
9. Packing specifications
200kg/pail (new metal pail)
10. Safety
This product contains solvent, must do safeguard procedure, handle carefully, avoid contact with the skins and eyes, for other details, please refer to MSDS of this product.
