WL-5709 Solvent Resistance Waterborne Acrylic Resin For Metal Baking Paint

Basic Information
Place of Origin: China
Brand Name: WeiLi Resin®
Certification: ISO9001
Model Number: WL-5709
Minimum Order Quantity: 5000KG
Price: Negotiable
Packaging Details: 120 kg plastic drum
Delivery Time: 14 work days
Payment Terms: L/C, T/T
Supply Ability: 500t/month
Detail Information
Appearance: Light Yellow Transparent Liquid Solid Content: 60±1
Vicosity At 25℃ , Cps(Brookfeld, LVT No.4,64 RPM): 10000-30000 Ph Value: 6.5-7.5
Particle Size(μm): 0.05-0.10 Density (g/l): 1.02-1.05
High Light:

Boiling Resistance Waterborne Acrylic Resin


solvent resistance Waterborne Acrylic Resin


Metal Baking Paint Waterborne Acrylic Resin

Product Description

WL-5709 Waterborne acrylic emulsion for Metal baking paint


Product Introduction

It uses (meth) acrylic (ester) as the main raw material and is copolymerized by introducing special functional monomers; it has excellent adhesion, water resistance, and solvent resistance; through compounding with amino resin curing agent, it can be prepared with different Uses, water-based glass baking paint and metal baking paint with excellent performance.


Amino resins are thermosetting resins with excellent tensile strength, hardness and impact resistance. specialized amino resins for use as baking finish curing agents in coating. Amino resins produce coating films with improved hardness and solvent resistance when used in combination with waterborne acrylic resin WL-5709.


Physical Property:

Solid content % 60±1
Viscosity at 25℃,cps(Brookfield, LVT No.4,60 RPM ) 10000-30000
Ph Value 6.5-7.5
Apperance Light yellow transparent liquid
Density (g/l) 1.02-1.05
Particle size(μm) 0.05-0.10



  • Good adhesion to glass substrate
  • Good adhesion to hardware such as stainless steel, aluminum alloy, etc.
  • Good water resistance and better boiling resistance
  • Good solvent resistance
  • Good water solubility and dilution
  • Excellent salt spray resistance
  • Good weather resistance, good gloss and color retention



  • Water-based glass paint
  • Aluminum alloy, zinc alloy, stainless steel water-based paint
  • Water-based hardware electroplating varnish



WL-5709 is matched with Cytec 303 or Cytec 325, the ratio is 5709:303=3~4:1. When mixing the paint, first dissolve the curing agent with a cosolvent, then add 5709 resin and other components; add water at the end and stir at 1200 rpm for 30 minutes then filter and pack it. Add 1-2% adhesion promoter when it is necessary to improve adhesion and salt spray resistance.


Packaging and Storage Condition

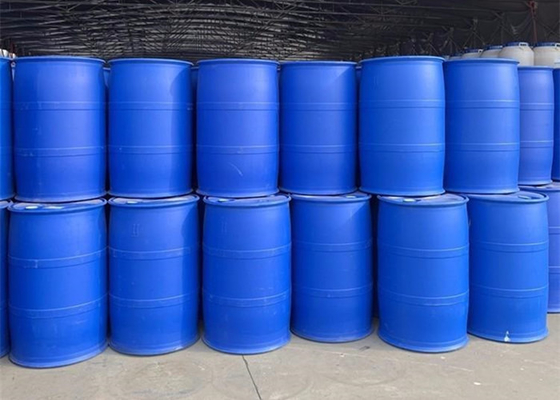

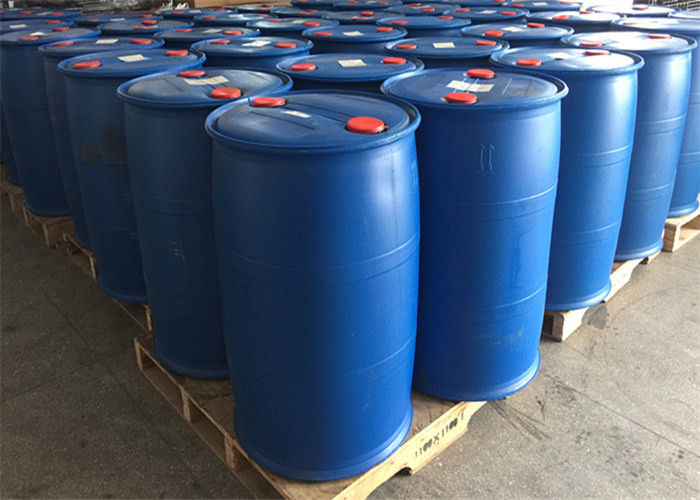

  • Packing in 120 kg plastic drum
  • The product should be stored in an airtight container to avoid freezing and high temperature. When possible, it should be used within six months. Recommended normal storage temperature is 10-35°


Special Tips

This material is complied according to our existing technology and experience, the technical advice provided is sincere, but it is not guaranteed to be used in all samples and formulations, all the data are for users reference only.
