Water-Based Acrylic Resin For Wood Architecture And Metal Coating

Basic Information
Place of Origin: China
Brand Name: WeiLi Resin®
Certification: ISO9001
Model Number: WL-5200
Minimum Order Quantity: 5000KG
Price: Negotiable
Packaging Details: 200kg/barrel; 1000kgs IBC
Delivery Time: 14 work days
Payment Terms: L/C, T/T
Supply Ability: 500t/month
Detail Information
Appearance: White Emulsion Main Ingredient: Acrylic Copolymer
Viscosity At 25°C: < 50 Cps Non-Volatile Matters: 38 ± 1.0 % (Electrical Oven; 120°C/2hr)
PH Value At 25°C: 8.8 ± 0.5 MFFT: 8~12°C
High Light:

modified epoxy resin


epoxy emulsion


Water Based Acrylic Resin Waterproof Breathable

Product Description



Water-based acrylic resin for wood architecture and metal coatings



WL-5200 is a self-crosslinked water-based acrylic resin with low MFFT and good anti-adhesion property, alcohol resistance ,heat resistance ,high hardness, highly waterproof, and breathable which is suitable for wood, architecture, and metal coatings.

  1. WL-5200 is free of heavy metals, phthalates, formaldehyde, and APEOs. It is a green product and complies with worldwide regulations about health and environment.
  2. WL-5200 is an acrylic emulsion to formulate one-component clear and pigmented primers and topcoats.
  3. Coatings based on WL-5200 provide low minimum film formation temperature (MFFT) and good anti-adhesion property. Meanwhile, it also provides excellent heat resistance.
  4. Taking the advantage of adhesion promoters added during the polymerization phase, WL-5200 provides good adhesions on glass, woods, ceramics, R/C surfaces, and metals. It can provide a film with good hardness when the coating is dried under room temperature.
  5. Formulations prepared by WL-5200 has good leveling and low foaming properties, which allows them to be applied by spraying or brushing process onto different substrates.
  6. WL-5200 can be easily thickened by regular thickeners, such as HEUR, HASE, and cellulosic thickeners. It is advisable to start with a lower level of thickener (maybe half or 1/3 the initial level according to your experience), let the formulation stabilize overnight, and then adjust the final viscosity.
  1. Low minimum film formation temperature (MFFT)
  2. Early anti-adhesion property
  3. Excellent temperature resistance
  4. Allow high-gloss coatings
  5. High film hardness
  6. Good water and alcohol resistance
    1. Appearance — White emulsion
    2. Main Ingredient — Acrylic copolymer
    3. Non-Volatile (%) — 38 ± 1.0 % (Electrical Oven; 120°C/2hr)
    4. pH Value at 25°C — 8.8 ± 0.5
    5. Viscosity at 25°C — < 50 cps
    6. MFFT — 8~12°C


Stock Formulation for Coatings on Ceramics

Item Material wt% Function Supplier
1. WL-5200 86.28 Resin
2. DPM : PnB (1:1) a,b 1.29 Coalescing aid Dow
3. CoatOSil* 1211 a 0.26 Wetting aid Momentive
4. Borchi® Gen DFN a 0.86 Leveling aid OMB Borchers
5. D.I. Water a 1.29
6. AMP-95 0.13 adjust pH to 8.5~9.0
7. Desmodur® XP 2802 0.86 Cross-linker Bayer
8. BYK-024 0.26 Defoamer BYK
9. Bindzil CC301 8.63 Anti-soiling and improvement of abrasion resistance AKzoNobel
10. R-288 0.13 Thickener Elementis
  Total weight 100
  1. Coalescing and wetting aids have to be diluted with water mentioned in item 5. into a mixture. The mixture is then slowly added into the above polymer emulsion while stirring.


White Coating for Ceramics

  1. Preparing TiO2 dispersion
Item Material wt% Function Supplier
1. TiO2 55.0 Pigment DuPont
2. D.I. Water 42.0
3. AMP-95 0.5 adjust pH
4. CoatOSil* 1211 0.5 Wetting aid Momentive
5. Borchi® Gen DFN 1.0 Dispersing aid OMB Borchers
6. TME 0.2 Surface treatment for TiO2 GEO Specialty Chemicals
7. BYK-024 0.05 Defoamer BYK
8. Glycerol 1.45 TiO2 stabilizer
9. R-255 0.3 Thickener Elementis
  Total weight 101


  1. Preparing white coating
Item Material wt% Function Supplier
1. Resin base prepared in “2 750 Resin base
2. TiO2 dispersion (A) 250 Pigment dispersion
  Total weight 1000


Luminous Coating for Ceramics

  1. Preparing luminous powder dispersion
Item Material wt% Function Supplier
1. Luminous powder 58.0


(Particle size ≤ 3000 mesh)

2. D.I. Water 40.0
3. AMP-95 0.5 adjust pH
4. CoatOSil* 1211 0.5 Wetting aid Momentive
5. Borchi® Gen DFN 0.5 Dispersing aid OMB Borchers
6. AQ-600 0.5 Anti-sagging aid King Industries
7. BYK-024 0.03 Defoamer BYK
8. R-255 ~0.03


(depending on spray coating requirement)

  Total weight 100.06


  1. Preparing luminous coating
Item Material wt% Function Supplier
1. Resin base prepared in “2 800 Resin base
2. Luminous powder dispersion (A) 200 Pigment dispersion
  Total weight 1000





  1. Top Coat for Ceramics
Item Material wt% Function Supplier
1. Resin base prepared in “2 95.5~97.6 Resin base
2. Dye 2~4 Surface color adjustment
3. PE-Wax 253S 0.4~0.5 Hand value improvement WWRC
  Total weight 100



  1. Coating Conditions for Ceramics
  1. Viscosity: Ford #4 cup, 34 ± 4 secs
  2. Procedure:
    1. Using spray coating to apply color base coat prepared in point “3” or “4”. The coating thickness depends on end user’s requirement about coating fullness. Basically, the thickness of this base coati should be high enough to cover the background color.
    2. Allow the base coat to dry for 2 hours for the next coating.
    3. Polish the base coat slightly to improve the coating gloss.
    4. If the appearance of the first base coat is not smooth/full enough, apply the second base coat.
    5. Dry the second base coat for another 2 hours under room temperature and polish the 2nd base coat after drying.
    6. Apply the top coat prepared by formulation mentioned in point “5”.
    7. Leave the 1st top coat to dry under room temperature for 2 hours and then polish it.
    8. If the coating appearance is not glossy enough, apply another top coat by repeating the procedure “6” and “7”.
    9. Dry the final coating piece in an oven @ 40°C for 24 hours or under room temperature for 48 hours before being packaged. The final curing time depends on the local temperature and humidity.

Water based eco-friendly rust prevention primer

Item Material wt% Function Supplier
1. WL-5200 b 51.2 Resin
2. Aluminum tripolyphosphate a 15.1 Anti-corrosive pigment Dow
3. Silicone carbide a,b 8.5 Filler
4. Calcium carbonate a 4.7 Filler
5. DISPERBYK®-181 a 2.7 Dispersing aid BYK
6. BYK-346 a 0.5 Wetting aid BYK
7. D.I. Water a 14.2
8. BCS b,c 1.9 Coalescing aid
9. Sodium nitrite b 0.5~0.9 Anti-oxidant
10. BYK-028 b 0.3 Defoamer BYK
  Total weight 100
  1. Item 2, 3, 4, 5, 6, and 7 are grinded and dispersed together by conical grinding model until the particle size < 60 μm.
  2. Coalescing aid (Item 8) is slowly added into resin (Item 1) while stirring. Then the mixture is gradually added into the grinded dispersion prepared in (a). Item 9 and 10 are then separately slowly added into the mixture prepared aforementioned with gentle agitation to complete the formulation.


Coating Conditions and performance

  1. Tools for coating: gravity feed type spray gun, orifice: 2.5 mm.
  2. Caution before coating: mix the formulation well before conducting spray coating.
  3. Procedure:
    1. Using methyl ethyl ketone (MEK) to degrease the tested steel plate surface. The degreased surface is then abraded using 180 grit abrasive paper. The surface is then cleaned by MEK again before coating.
    2. The surface prepared by the procedure in point 1 is sprayed using the spray gun mentioned in (A) with the primer formulation. The wet coating thickness is 120 ~ 160 μm.
    3. The coating is then dried in an oven @ 50°C for 60 minutes. The steel plates are then removed from oven and allow it to cool under ambient temperature for 30 minutes.
  4. Coating performance
Item Test Result
1. Film thickness (dry) 58 μm
2. Grid test 5B, no delamination
3. Pencil hardness 2H

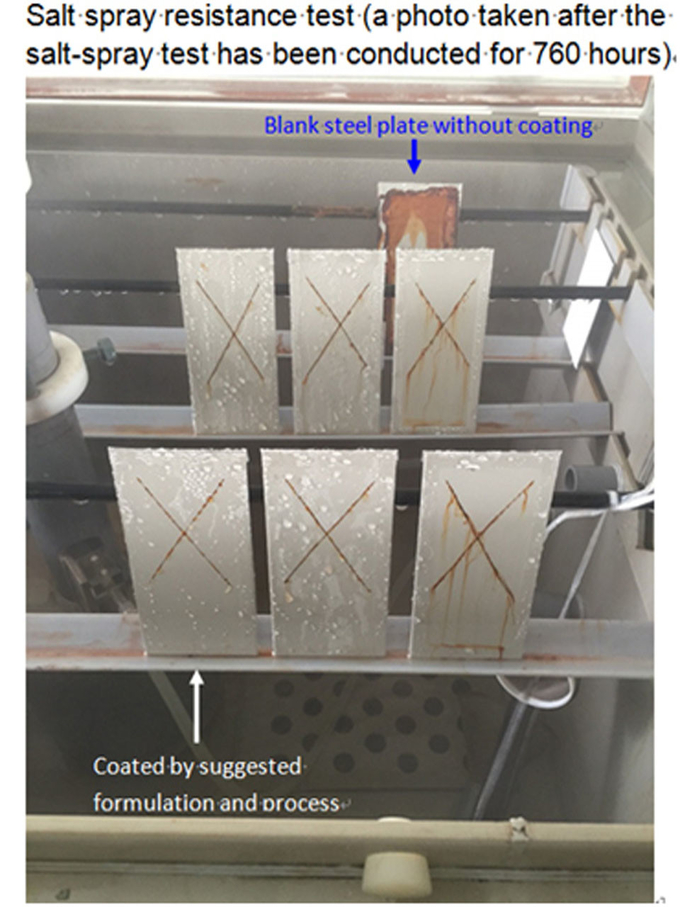

4. Salt spray resistance test (a photo taken after the salt-spray test has been conducted for 760 hours)

Water-Based Acrylic Resin For Wood Architecture And Metal Coating 0

Blank steel plate without coating

Coated by suggested formulation and process


Water-Based Acrylic Resin For Wood Architecture And Metal Coating 1



  • Note: These suggestions and data are based on information we believe to be reliable. They are offered in good faith, but without guarantee, as conditions and methods of use of our products are beyond our control. We recommend that the prospective user determine the suitability of our materials and suggestions before adopting them on a commercial scale.
