One Component Solvent Based Resin Mirror Effect Special For Metal Pigmented Coatings

Basic Information
Place of Origin: china
Brand Name: WeiLi Resin®
Certification: ISO9001
Model Number: BC-504
Minimum Order Quantity: 1000KG
Price: Negotiable
Packaging Details: 50kg/drum
Delivery Time: 14 work days
Payment Terms: L/C, T/T
Supply Ability: 500t/month
Detail Information
Appearance: Clear And Transparent Color Values: ≤2
Solid Content: 22±1% Fineness: ≤15μm
TG Values: 85℃ Thickness: 15
High Light:

high gloss resin


liquid gloss resin


One Component Solvent Based Resin

Product Description

Mirror-like Effect Paint Resin BC-504


BC-504 self-drying solventborne resin is a new developed paint resin , which is blended with

Special metal pigment that creates metallic brilliant effect (mirror like effect). can be used on the surface of ABS, PS, Wood materials and primered metal


Mirror-like Effect Paint ResinBC-504

Test item Standard
Appearance Clear and Transparent
Color Values ≤2
Solid Content 22±1%
Fineness ≤15μm
TG Values 85℃
Resistance to Alcohol 50 times
Hardness HB
Dry time-by touch 5 mins (25℃)
Dry time-harden 30 mins (relative humidity 70%)
Thickness 15

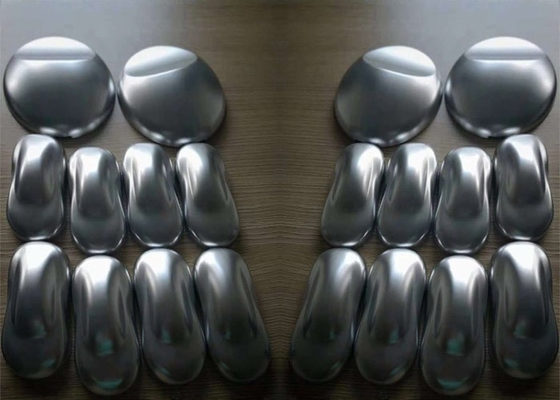

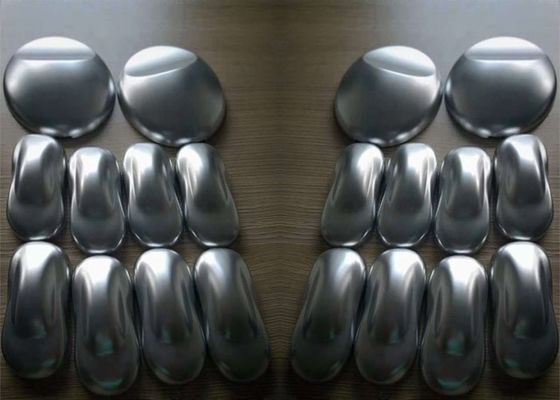

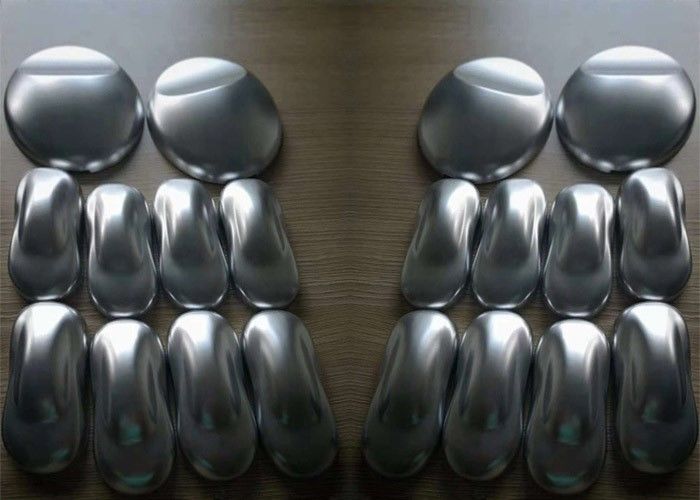

It makes aluminum powder and pearl pigment more fine and show great metal effect by adding aluminum powder or pearl pigment, as decorated paint, directly spray on the surface of ABS, PS, Wood materials and primered metal to get the electroplated effect. Fast dry and good adhesion with excellent properties of resistance to light, weather, alcohol, scratch, not contain heavy metal such as Pb, Cr.



● Plastics, Wood and Primered metal.



● Keep the brushed surface clean, thoroughly dry and out of oil and wax.


Formula for making paint

Resin 70%
Aluminum Paste 7%
Thinner 23%


Formula for making thinner

BCS 10%
Ethyl Ester 55%
n-Butyl Alcohol 25%
Cyclohexanone 5%
DAA 5%

● Spraying by adding 1:3 thinner, decreasing the quantity of solvent or adjust the portion of solvent to avoid the damage of some plastic base.

● In summer, according to real condition, adding suitable quantity of BCS (referenced qty 10%) to spray by 1:1 thinner.



Some type Merck pearl pigments for reference.


MirravalR: There's a new star on the horizon in the miravalr cosmic portfolio. following the launch of our gold and bronze pigments, we are proud to present the third marvel: miravalr cosmic silver. as the latest of an exciting new generation of effect pigments based on calcium aluminum borosilicate, it's ideal for prints and plastics.


The mysteries of the universe appears to unfold with this pigments. Its deep silver sparkle offers outstanding coverage and looks best against dark backgrounds. It won’t just tempt designers with its extreme brilliance and highly glossy finish. It’s many unique styling possibilities and application options are every bit as captivating- it even complies with food packaging regulations.


MiravalR pigments consist of specially coated synthetic borosilicate flakes. Owing to a protective silica layer, the platelets boast a very smooth, regular surface, which is why the pigments offer such intense color purity. The protective layer also increases mechanical stability and gloss and gives the platelets nicely rounded edges. Of course, it’s very easy to work with the pigments to achieve a great variety of impressive silver effects.


Used on its own, it’s a shooting star for prints and plastics. Like rare stardust, a little will go a long way. With high impact at low concentrations, MiravalR Cosmic Silver offers excellent value for sensational effects. On the other hand, larger amounts added to other effect pigments or colorants deliver appeal that’s out of this world. What’s the secret behind its intense chrome charm? Very thin calcium aluminum borosilicate platelets, innovatively coated with metal oxides for the pigment’s unique glow. Our special production process then takes it to new heights, giving the pigments its extraordinary brilliance and powerful appeal. Thanks to the incredible coverage it offers, it’s a great way to add an unprecedented, highly brilliant, pure-silver effect to fine products.


Hot Tags: replacing electroplated effect paint resin, China, Vietnam, manufacturers, suppliers
