Water Based Hydroxyl Acrylic Resin with Hydroxyl Value 2.8% for 140℃/20min and 160℃/20min Baking on Metal Substrates

Brand Name:	WeiLi Resin®
Model Number:	WL-AD394
MOQ:	5000KG
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	500t/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Application:

Household Appliances Surface Finishing Paint

Usage:

Motorcycle Engine Casing Paint

Performance:

Good Vividness

Advantage:

Exceptional Sag Resistance

Hydroxyl Value:

2.8%

Function:

High Gloss Paint

Packaging Details:

200Kg/Plastic Drum

Highlight:

Vehicle Metal Surfaces Hydroxyl Acrylic Resin

Water Based Hydroxyl Acrylic Resin

High Gloss Hydroxyl Acrylic Resin

Product Description

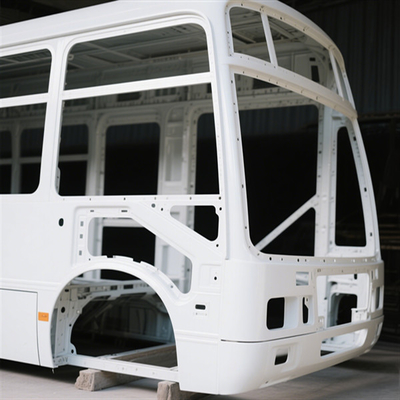

High Gloss Water Based Hydroxyl Acrylic Baking Paint Resin For Vehicle Metal Surfaces

Product Introduction

A water-based hydroxylated acrylic dispersion designed for use with isocyanate curing agent/amino resin to prepare high-performance two-component polyurethane paint and amino baking varnish. Ideal for topcoat and clearcoat applications on various metal substrates.

Key Features

High gloss finish with excellent film transparency
Superior gloss retention and recoatability
Outstanding impact resistance and flexibility

Typical Parameters

Item	Typical Value	Test Method

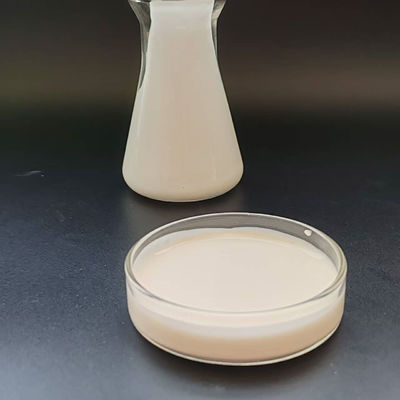

Appearance	Milky white liquid	Visual inspection
Non-volatile matter (%)	44±2	GB/T1725-2007
Viscosity (mPa*S)	450~4500	GB/T 21059-2007
Hydroxyl content (reference value) (%)	2.8	Based on solid content

Test Report (140℃/20min)

Test Item	White Paint	Red Paint
Appearance	Good leveling and high vividness	High vividness, excellent leveling, excellent color rendering
Film thickness	37-43	19-24
Gloss (tinplate)	85.3/92.4	85.6/92.9
Adhesion	1	0-1
Hardness	F/H scratch-free	F scratch-free
Impact resistance (front) 40cm	Pass	Pass
Impact resistance (back) 30cm	Pass	Slight chipping at the top
Flexibility (1mm)	Pass	Pass
MEK wiping resistance	30 times, without losing luster, without becoming soft, and with no noticeable changes	30 times, without losing luster and slightly softening

Recoatability Test

140℃/20min

Recoating times	White	Red
1	0-1(1)	0-1(0)
2	0	0-1(1)
3	0	0

160℃/20min

Recoating times	White	Red
1	1	1
2	0-1(1)	1
3	0	0

Product Packaging and Storage

Packaging specifications: 20KG/200KG large-opening plastic barrels or customized packaging available
Product transportation: Handle with care to avoid impact, damage and leakage
Product storage: Store in sealed containers at 5~35℃, avoiding freezing and high temperatures
