Chemical Resistance Water Based Thermosetting Acrylic Resin For Glass Baking Paint

Basic Information
Place of Origin: China
Brand Name: WeiLi Resin®
Certification: ISO9001
Model Number: WQ-TC515
Minimum Order Quantity: 5000KG
Price: Negotiable
Packaging Details: 200kg/drum
Delivery Time: 14 work days
Payment Terms: L/C, T/T
Supply Ability: 500t/month
Detail Information
Appearance: Transparent Liquid Color: <1#(Fe-Co)
Non-volatile %: 65±2 Acid Value MgKOH/g: 45-60
Solvent: Butanol/PM Pigment (Gardner): ≥1
Viscosity (Cps/ 25℃): 6000-9000
High Light:

PM Soluble Thermosetting Acrylic Resin

,

Liquid Thermosetting Acrylic Resin

,

Thermosetting Water Based Resin


Product Description

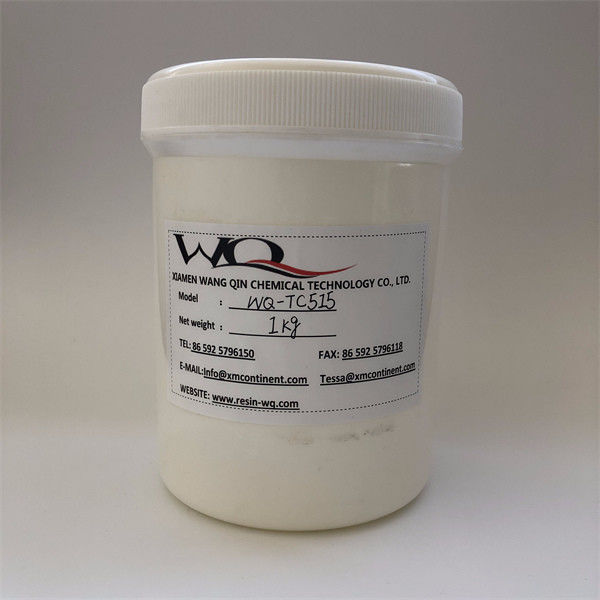

WQ-TC515 Chemical Resistance Water Based Thermosetting Acrylic Resin For Glass Baking Paint





Induction

WQ-TC515 water based thermosetting acrylic resin is water-soluble after amine neutralization, WQ-TC515 water based thermosetting acrylic resin has excellent weather resistance, chemical resistance, salt spray resistance, alcohol resistance etc.  water based thermosetting acrylic resin WQ-TC515 can be directly made into glass baking paint, Poorcelain backing paint, hardware backing paint, which can be cross-linked to form a film at an appropriate temperature.



Performance

  • Good gloss, high hardness, strong adhesion, high-fullness surface and
  • Excellent weather resistance, chemical resistance,
  • Good salt spray resistance, alcohol resistance, etc.



Physical Property

Appearance Transparent liquid
Color <1#(Fe-Co)
Solid content (125℃×1H,%) 65±2
Pigment (Gardner) ≥1
Viscosity (Cps/ 25℃) 6000-9000
Acid value (mgKOH/g) 45-60
Solvent Butanol/PM



Applications

  • Glass backing paint
  • Porcelain backing paint
  • Hardware backing paint



Reference formula for water-based acrylic glass baking varnish

Recipe composition Supplier/Recommend W%
Water based acrylic resin WQ-TC515 35--50
Methylated amino resin Cymel 303LF/325 8--12
Amine neutralizer DMEA 3--5
Water-based additive Water based leveling agents 0.1--0.3
Water-based defoamer - 0.1--0.3
Water-based wetting and dispersing agent - 0.5--2
Pigment Rutile Titanium Dioxide 10--25
Co-solvent Alcohol 1--5
Isobutanol - 1--5
Ethylene glycol monobutyl ether - 2--8
Water Deionized water 15--25



Notes:

Please neutralize the water-based acrylic resin WQ-TC515 with an amine neutralizer to a pH of about 7-8, then mix the water-based wetting and dispersing agent, pigment, part of the co-solvent and part of the deionized water evenly, and grind until the fineness is qualified. After that, add the remaining co-solvents, additives, amino resin, deionized water, etc., stir evenly, adjust the viscosity, and filter and pack after passing the inspection.



Storage Condition

  • Should be stored in a ventilated and dry place, the packaging should be kept tightly closed, and away from sources of ignition;
  • The resin is stored in the unopened package below 40°C, and the shelf life is 12 months from the date of production.

Chemical Resistance Water Based Thermosetting Acrylic Resin For Glass Baking Paint 0





Special Tips

This material is complied according to our existing technology and experience, the technical advice provided is sincere, but it is not guaranteed to be used in all samples and formulations, all the data are for users reference only.
