Anti Corrosion Weather Resistant Resin With Amino Curing Glass Baking Coatings

Basic Information
Place of Origin: china
Brand Name: WeiLi Resin®
Certification: ISO9001
Model Number: SE5726
Minimum Order Quantity: 5000KG
Price: Negotiable
Packaging Details: 200kg/drum
Delivery Time: 14 work days
Payment Terms: L/C, T/T
Supply Ability: 500t/month
Detail Information
Appearance: Clear, Yellowish Fe-Co Color: ≤2
Viscosity Pa.s/25℃: 1.5-3 Non-volatile %: 68±2
Acid Value MgKOH/g: 12-18 Solvent: XYL/PMA/ NBA
High Light:

weather resistant resin

,

liquid acrylic resin

,

Amino Curing Glass Baking Coatings


Product Description

With amino curing for Glass Baking Paints resin SE5726



1. Features

Excellent adhesion, flexibility and gloss, excellent water resistance and alcohol resistance, it can be used for amine curing and also can be used for amino curing.



2. Applications

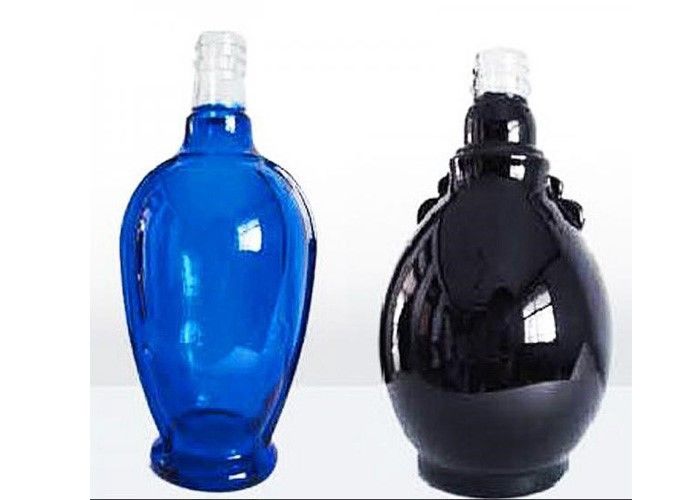

Glass wine bottles, general glass baking paint, metal anti corrosion, metal baking paint



3. Properties

Component Appearance

Fe-Co

Color

Viscosity

Pa.s/25℃

Non-volatile

%

Acid value

mgKOH/g

Solvent
Acrylic modified copolymer Clear, yellowish ≤2 1.5-3 68±2 12-18

XYL/PMA/

NBA



4. Compatibility and solubility

XYL + BCS +
TYL + CAC +
BAC + IBA +
CYC + NBA +

Remark:+ show soluble in/compatible in



5. Reference formula

Transparent red



Diluent
SE5726 60.0 XYL 40
Red color concentrate 8.0 TOL 25
BBG306 0.2 BAC 15
BBG052 0.1 CAC 10
XYL/IBA 37.7 IBA 10
Z-6040 2.0
(B component) Aliphatic amine T-31

A component resin: B component (T-31): diluent=4: 1: 2



6. Process conditions



▲ Baking condition: (1) 150℃ x 30min





▲ Substrate: glass wine bottle



7. Test technical index

Test Item Test Method Reference Standard Test Standard

Test Result

(reference value)

Hardness Pencil scratch GB/T6739-96 ≥2H 4H
Gloss 60degree GB/T9754-88 ≥85 97
Adhesion Cross -cut method GB/T9286-98 100% 100%

Alcohol resistance

99.7%

Soaking method ------- ≥ 4h The paint film did not change for 4hours
Water resistance Water soaking method --------- No color change, no bubbling, no falling off >24h
Salt fog resistance Neutral salt fog GB/T1771-91 Unilateral corrosion not exceeding 3mm 100h
Acid resistance Soaking method GB/T9274-88 10%H2SO4 24h no bubbling, no falling off, no color change Qualified
Alkaline resistance Soaking method GB/T9274-88 5%NaOH24h no bubbling, no falling off, no color change Qualified



8. Safe storage and shelf life

1. Stored in cool and ventilation place, keep far away from heat and fire resources, keep the container closed.

2. From production date, shelf life is 12months.



9. Packing specifications

200kg/pail (new metal pail)



10. Safety



This product contains solvent, must do safeguard procedure, handle carefully, avoid contact with the skins and eyes, for other details, please refer to MSDS of this product.
